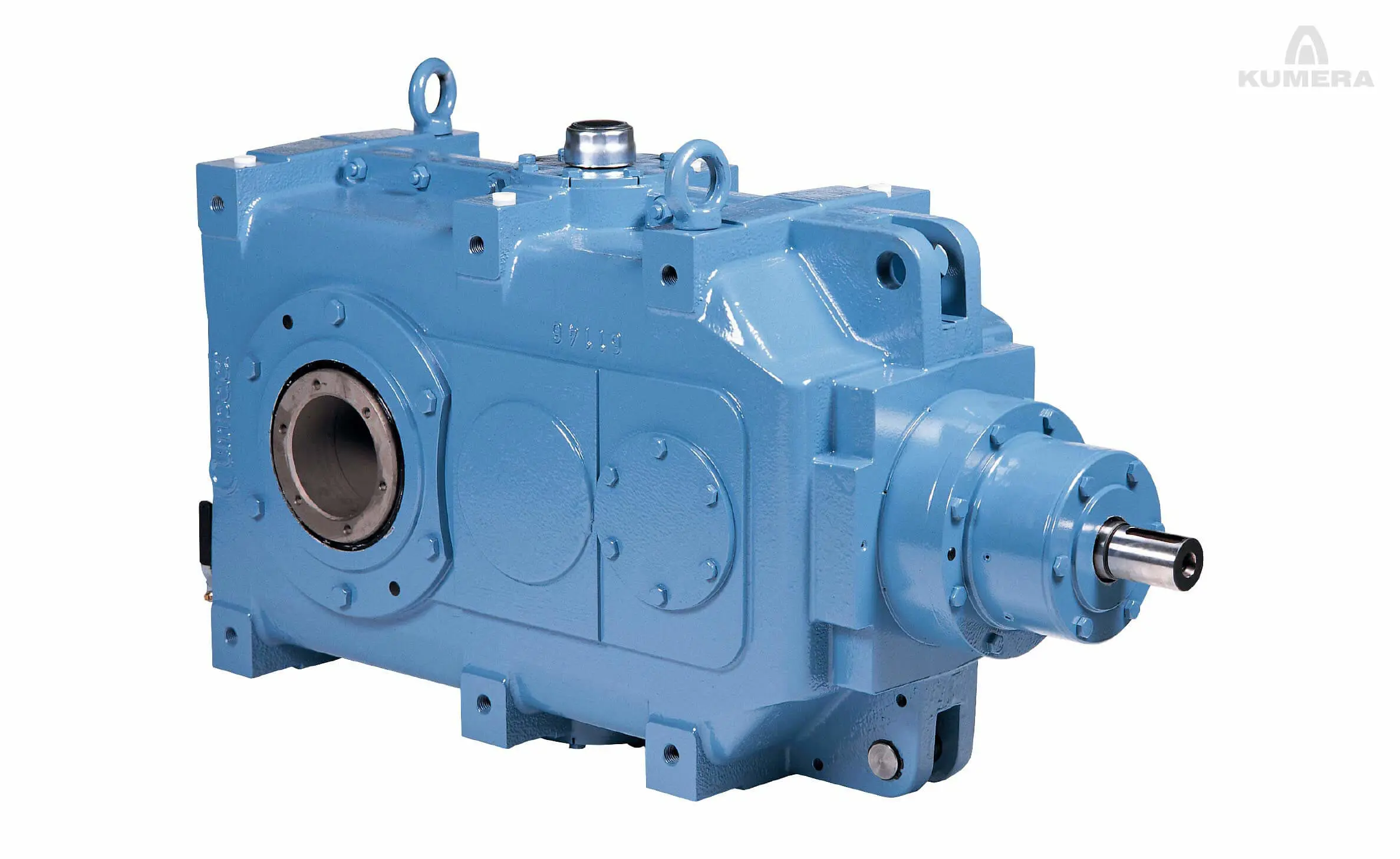

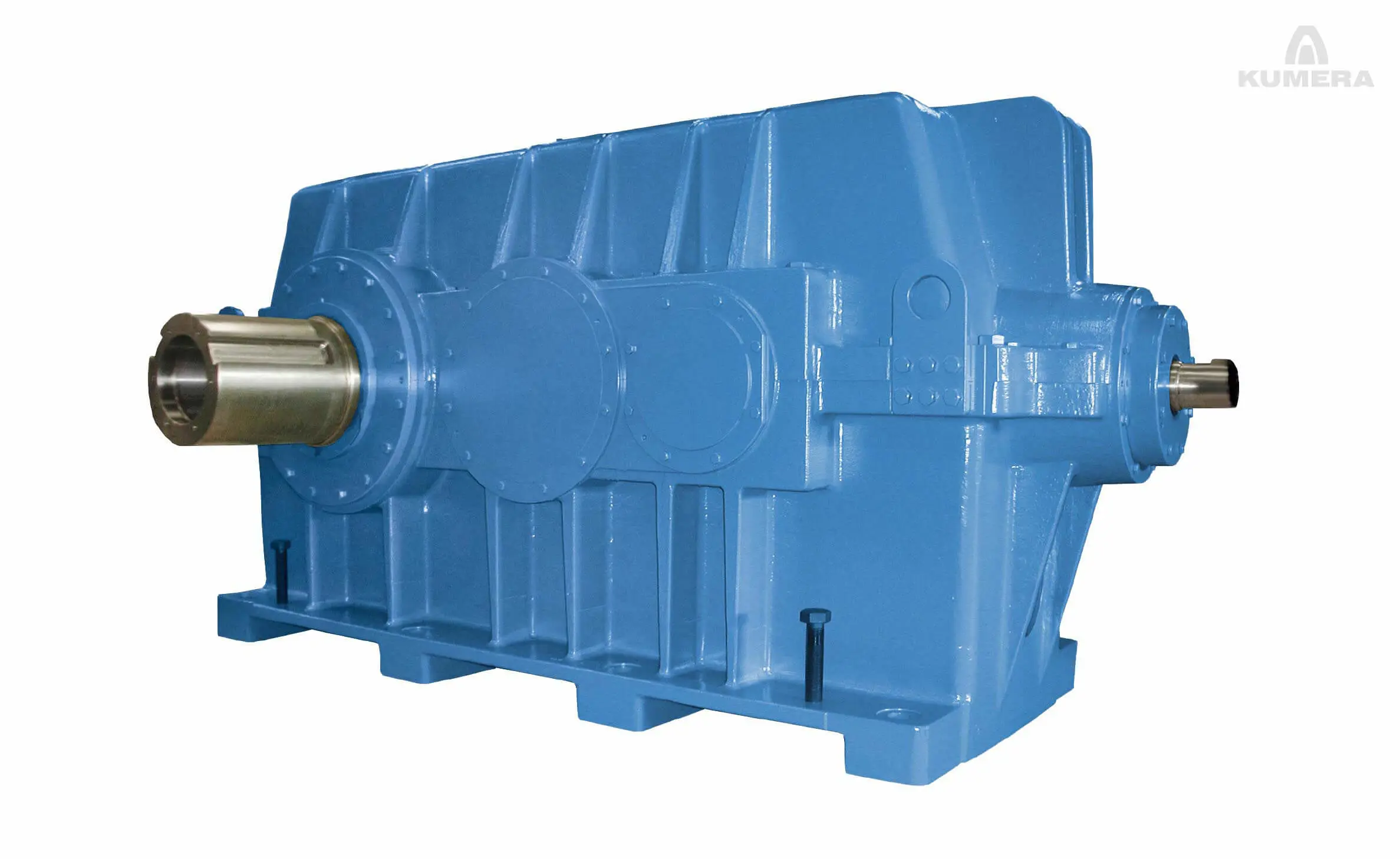

Multi Stage Helical and Bevel-Helical Gearboxes
Kumera F-, G-, D- Series- Multipurpose Gearbox Range

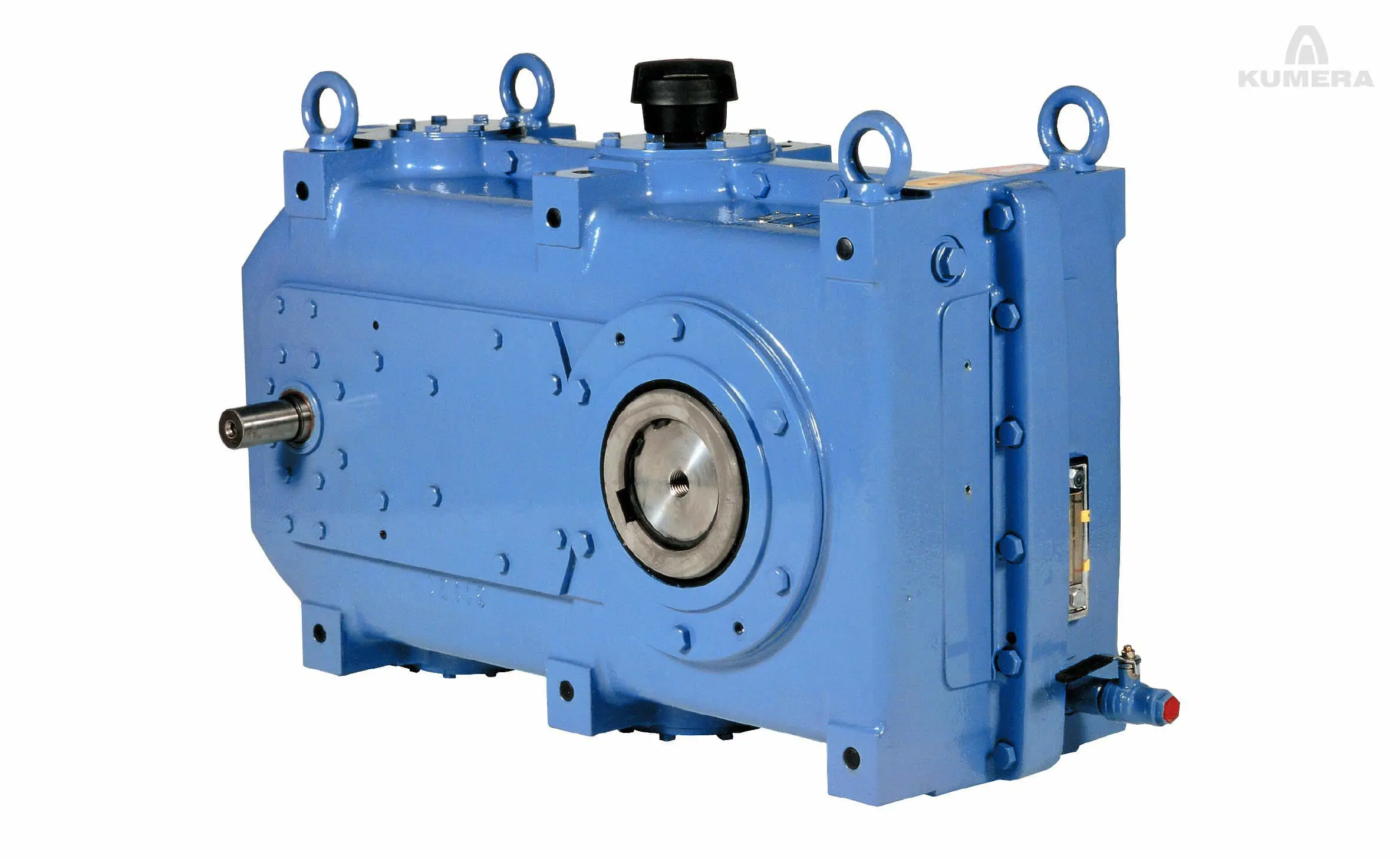

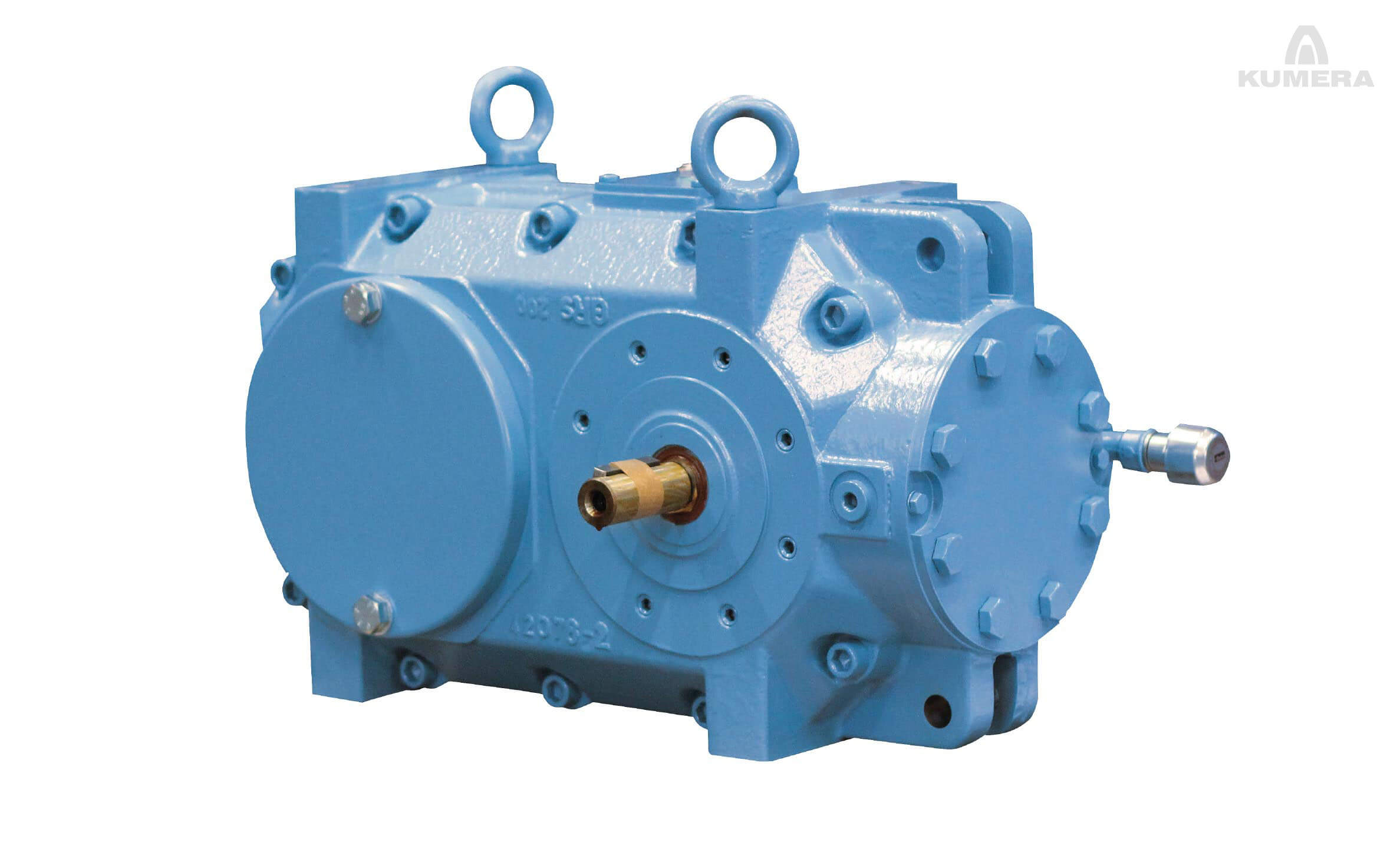

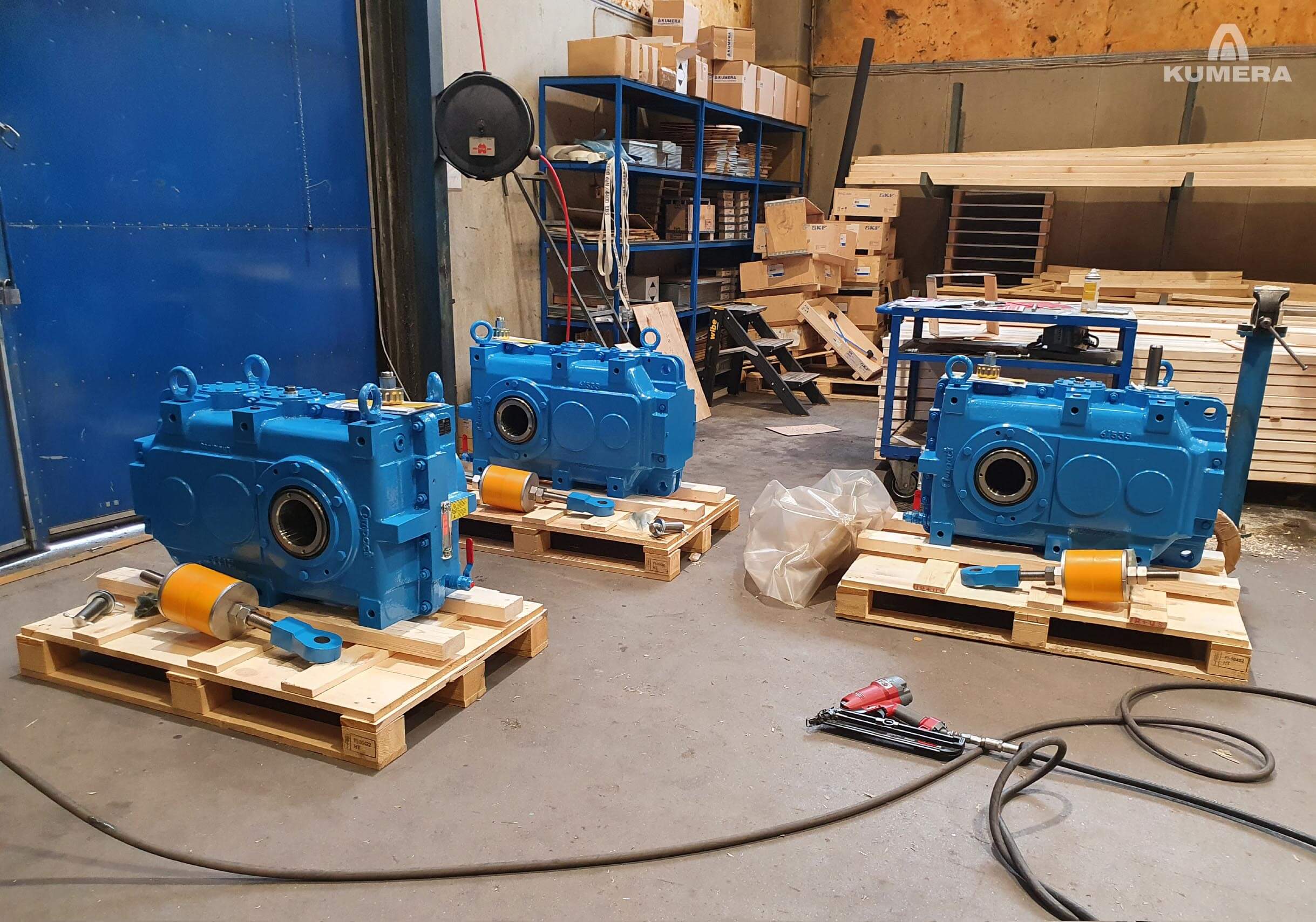

Kumera Multi Stage Helical and Bevel-Helical gearbox range includes 20 gearbox sizes from two- to five-stages. The range consist of F-, G- and D-series which are optimally divided to meet the torque and ratio requirements. All the sizes are available in helical and bevel-helical versions and can be equipped with either solid or hollow output shaft. The modular structure of the gearboxes enables the installation of additional equipment onto the gearbox. Thus a single gearbox can be transformed into a variety of applications and mounting arrangements.
Technical data:
Nominal torque rating 0,5 – 610 kNm
Nominal power rating up to 11 000 kW
Ratios from 5,6:1 to 3550:1 (Catalogue gear ratios)
20 gearbox sizes ; shaft center distances from 80 mm to 710 mm
Weights from 20 kg to 11 000 kg
Kumera F-, G-, D- Gearbox series are ideal for:
Pulp and Paper industry
Material handling systems

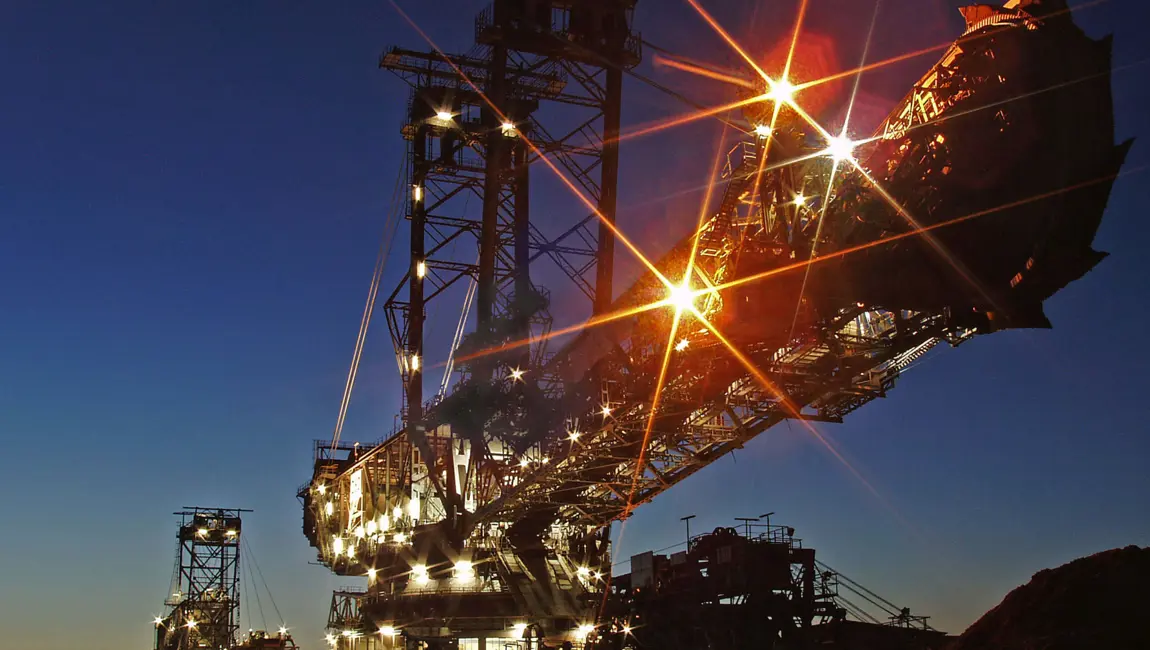

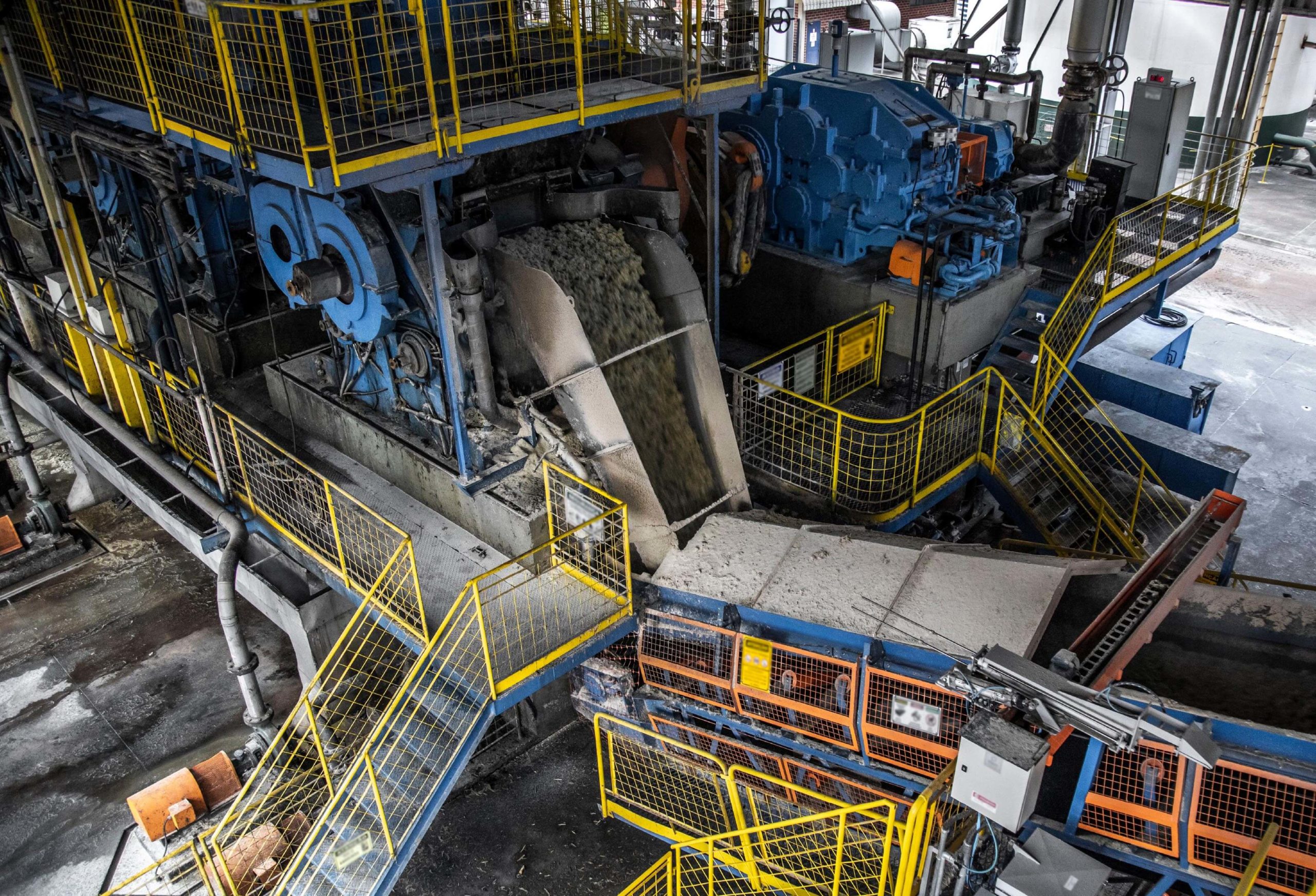

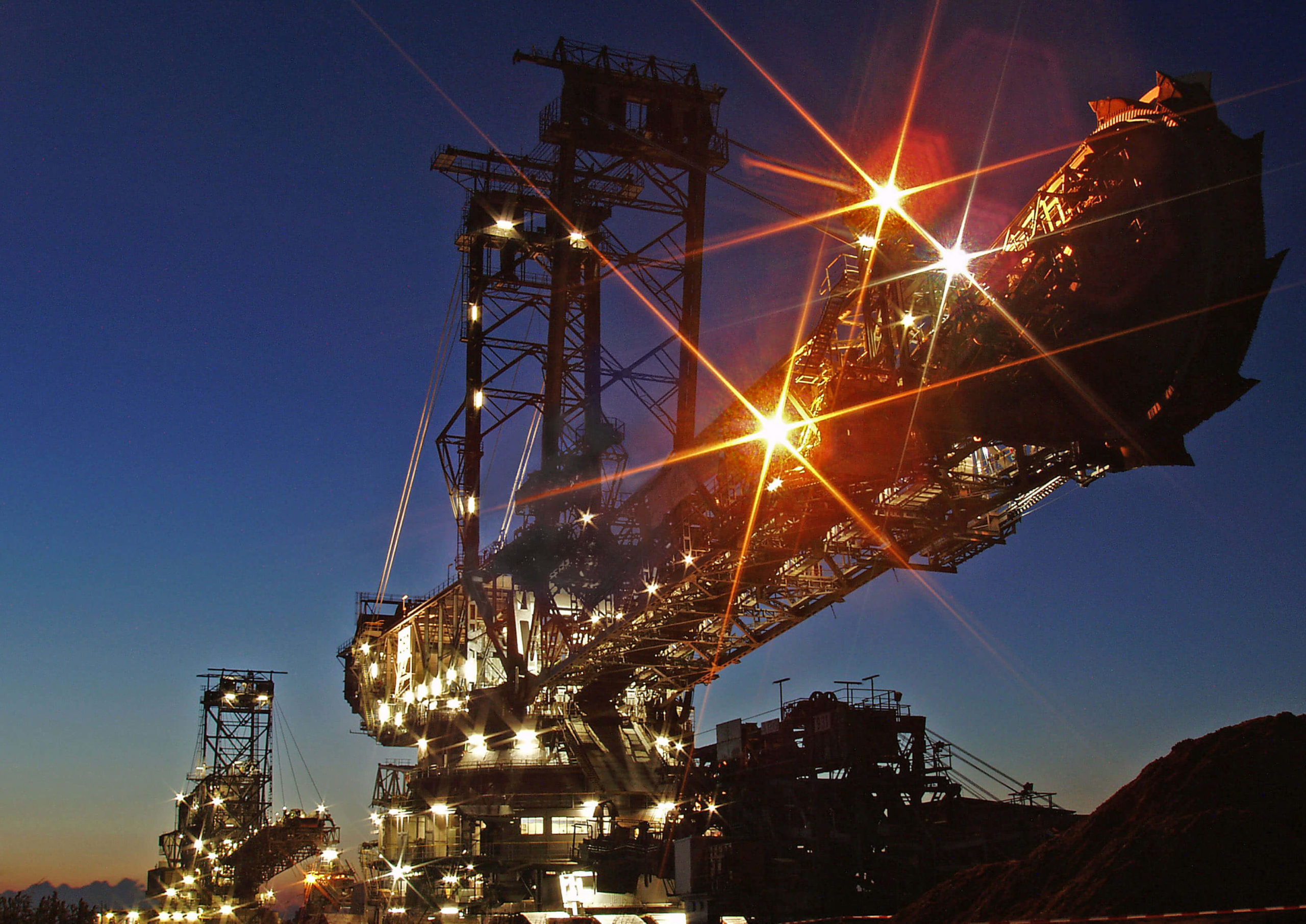

Mining and mineral industry
Metal processing
Applications:

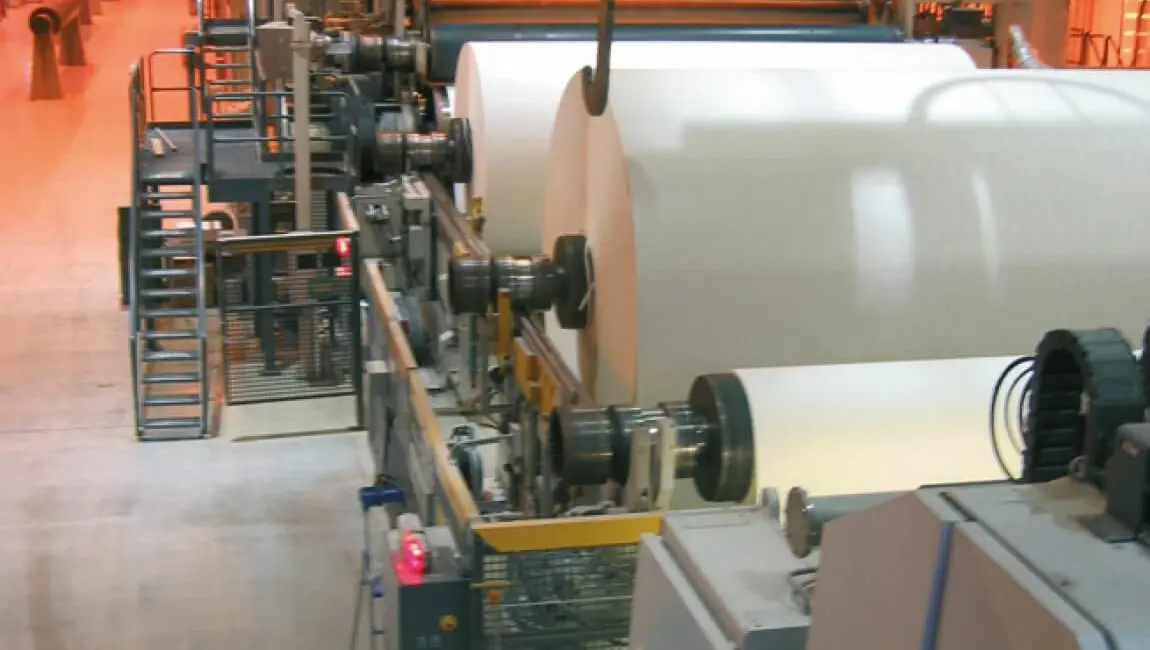

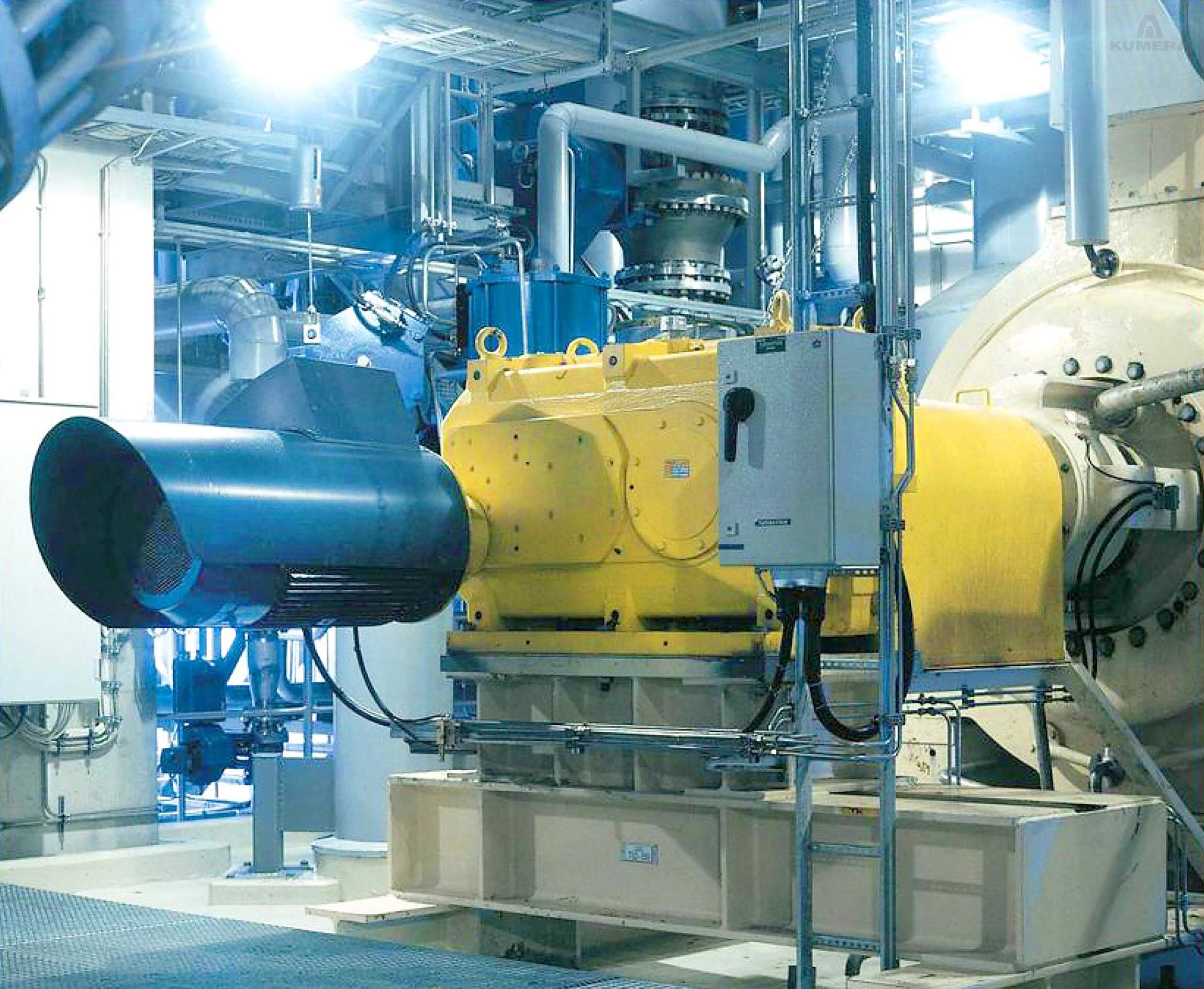

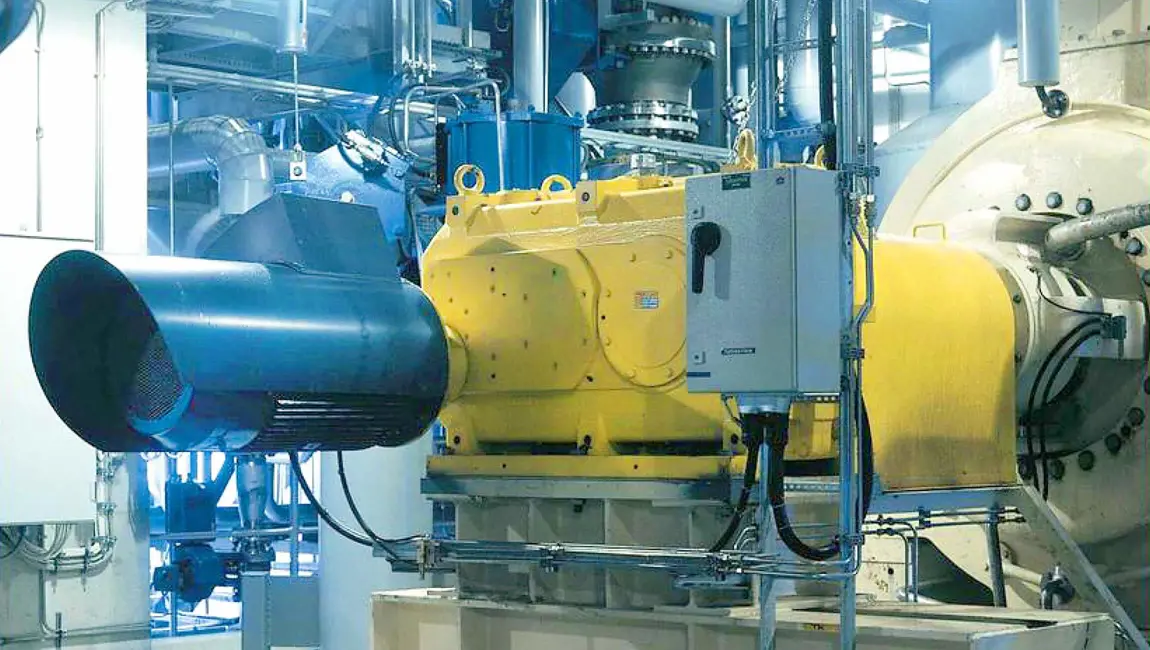

Paper Machine Drives
Drum Drives
Pulper Drives
Chipper Drives
Conveyor Drives
Crusher Drives
Crane Drives
Pump Drives
Screening Drives
Coiler Drives
Roll Drives
Kumera F-, G-, D- Bevel Gearbox series can be equipped with:

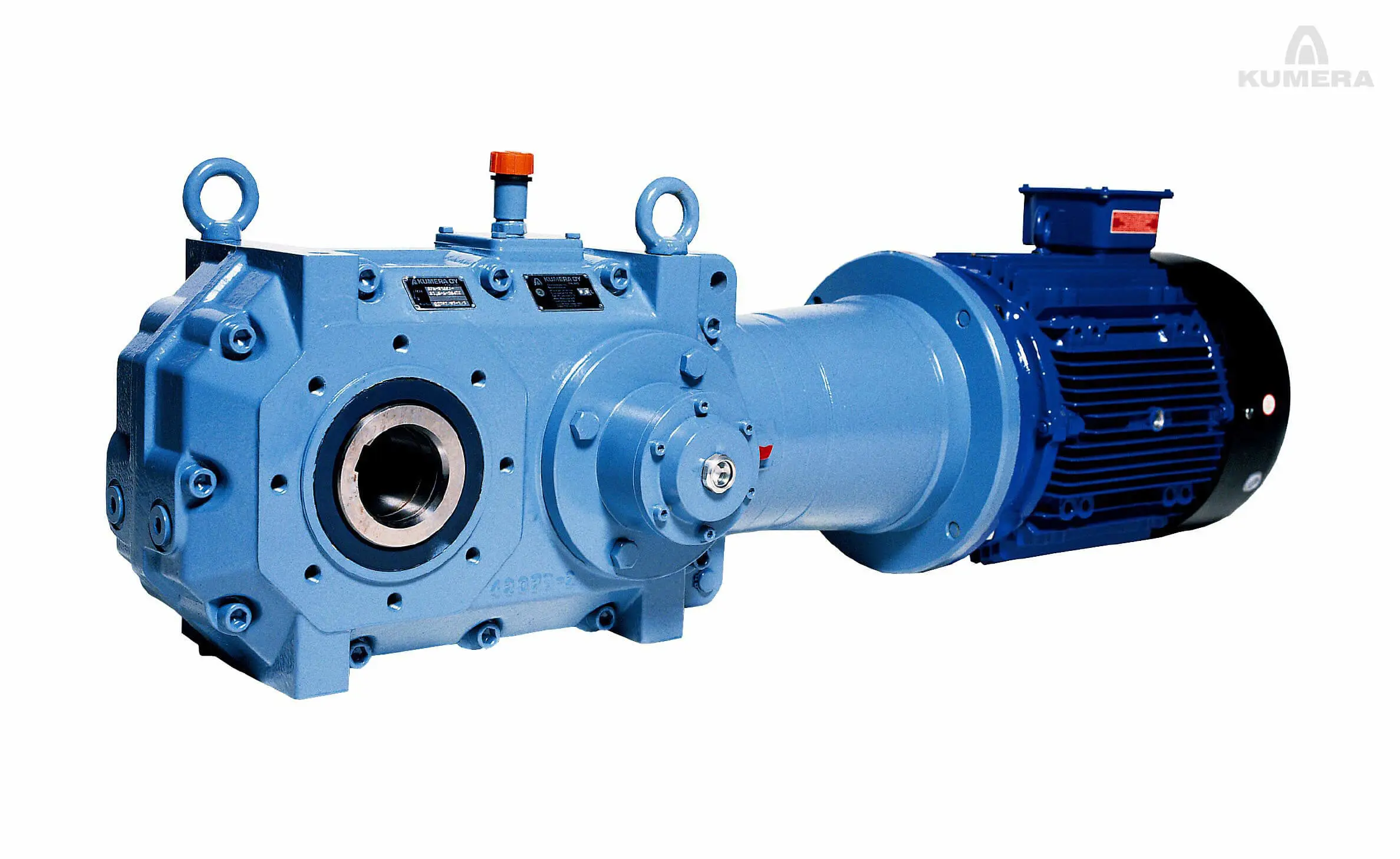

Motor adapter
Torque arm
Motor bracket/Belt drive
Mounting feet
Back stop device
Mechanical fan cooler with air-deflecting cover
Water cooling coil
Heating element
Shaft end pump
Water- or air-cooled lubrication unit
Remote condition monitoring: Kumera Guard Gear.
Sales, Service and Maintenance
Contact Sales & ServiceWe at Kumera are happy to serve customers world-wide. Kindly do not hesitate to contact us in any gearbox related issues.
Benefits:
High efficiency – Minimizing power loss and saving energy
Modular structure – The ability of adding additional equipment and variety of mounting arrangements
20 gearbox sizes and wide range of ratios – offer optimal gearbox size
Flexible product structure – Easy to customize for the customer needs
Gearbox configuration at power-plaza.com – Serving engineers worldwide and allows downloading the 3D-models, dimensional drawings and technical specifications 24 / 7
After Sales Services
Kumera Life cycle contract
Start-up and installation services
Maintenance services
Regular inspection visits
Maintenance consulting services
Original spare parts
24/7 on-call service
