One Stage Helical Gearboxes

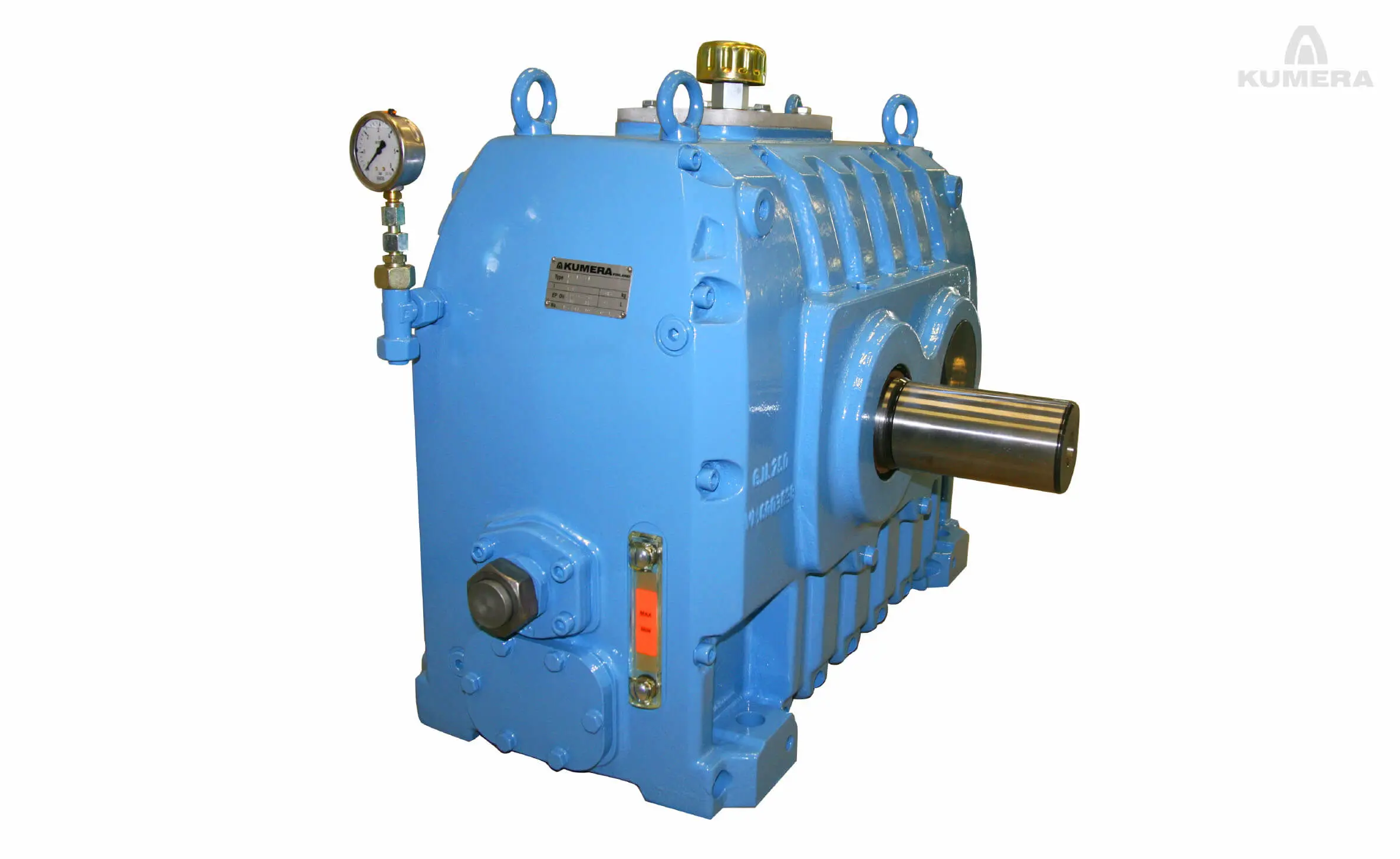

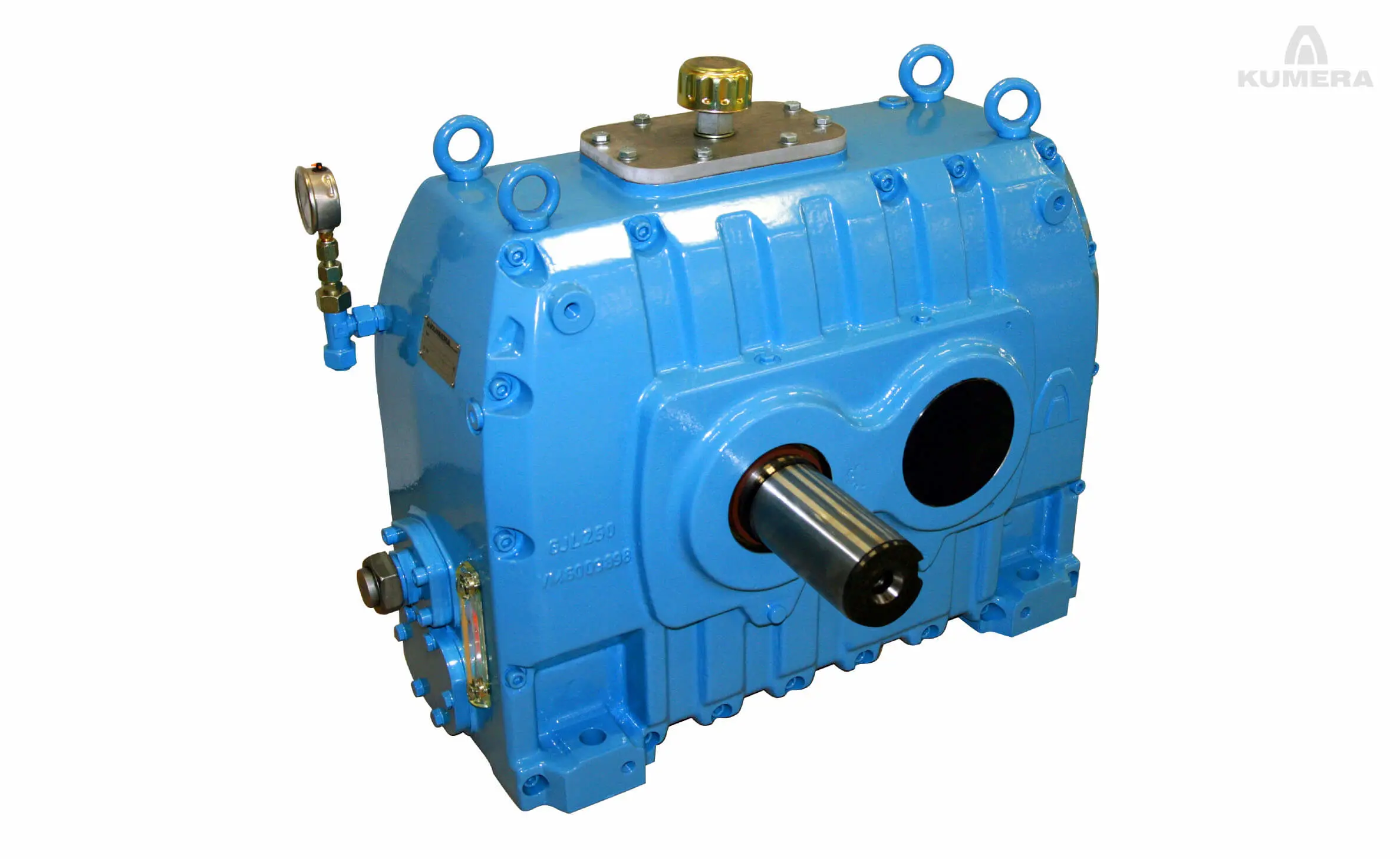

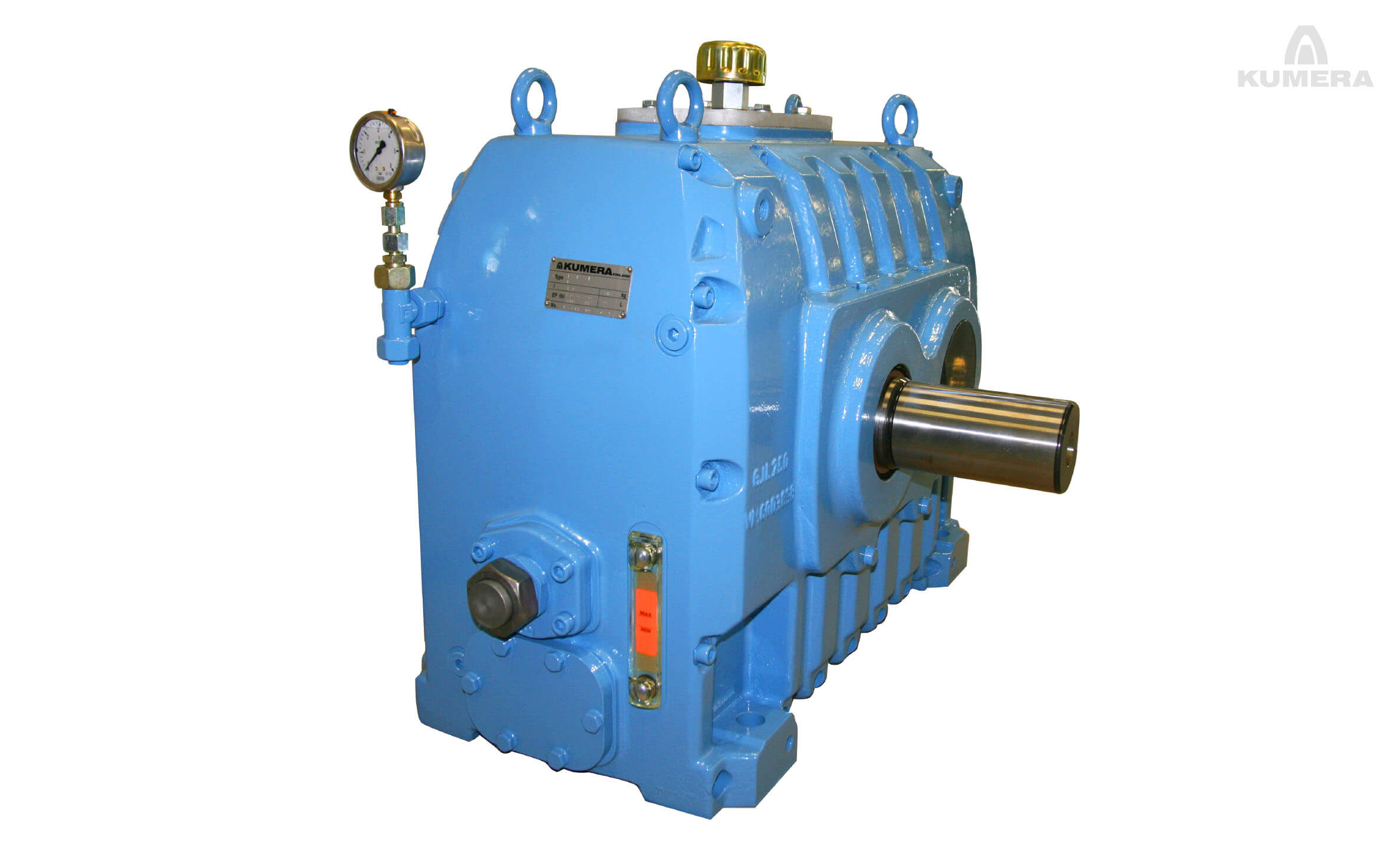

Kumera LX-Series - Versatile Gearbox Range
Kumera LX-gearbox series is specifically designed for fast rotating shafts such as roll applications. The range includes 16 gear unit sizes which are optimally divided to meet required torque ranges and ratio requirements. Integrated lubrication canals and gear wheels manufactured with high accuracy have resulted in compact dimensions with high torque range from 1 to 400 kNm. Maintenance-free labyrinth seals are integrated into the gearbox housing. Labyrinth seals cause neither wear nor friction on the rotating shaft. The gearbox can be easily connected to a central lubrication system or gearboxes can be equipped with a separate lubrication unit.
Technical data:
Nominal torque rating 1 – 400 kNm
Nominal power rating up to 14 900 kW
22 catalogue gear ratios from 1,25:1 to 6,3:1 (Catalogue gear ratios)
16 gearbox sizes; shaft center distances from 100 mm to 630 mm
Weights from 80 kg to 7800 kg
Kumera LX-series is perfect choice for:

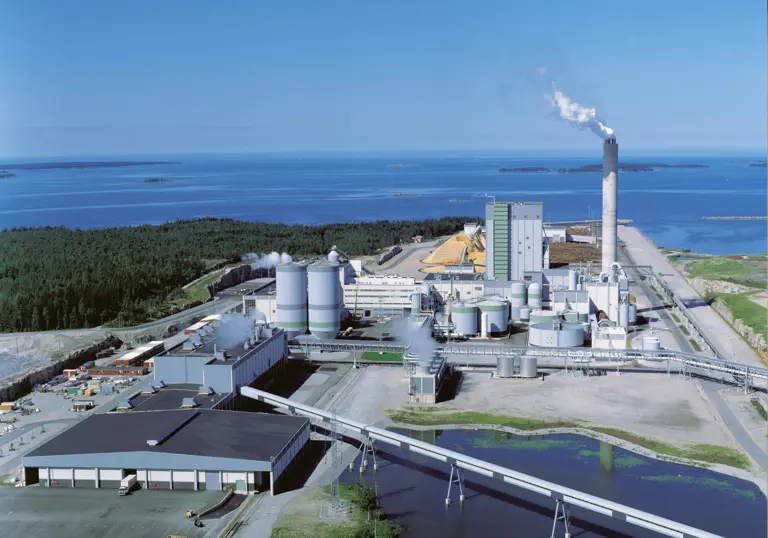

Pulp and Paper industry
Material handling systems
Mining and mineral industry
Applications:

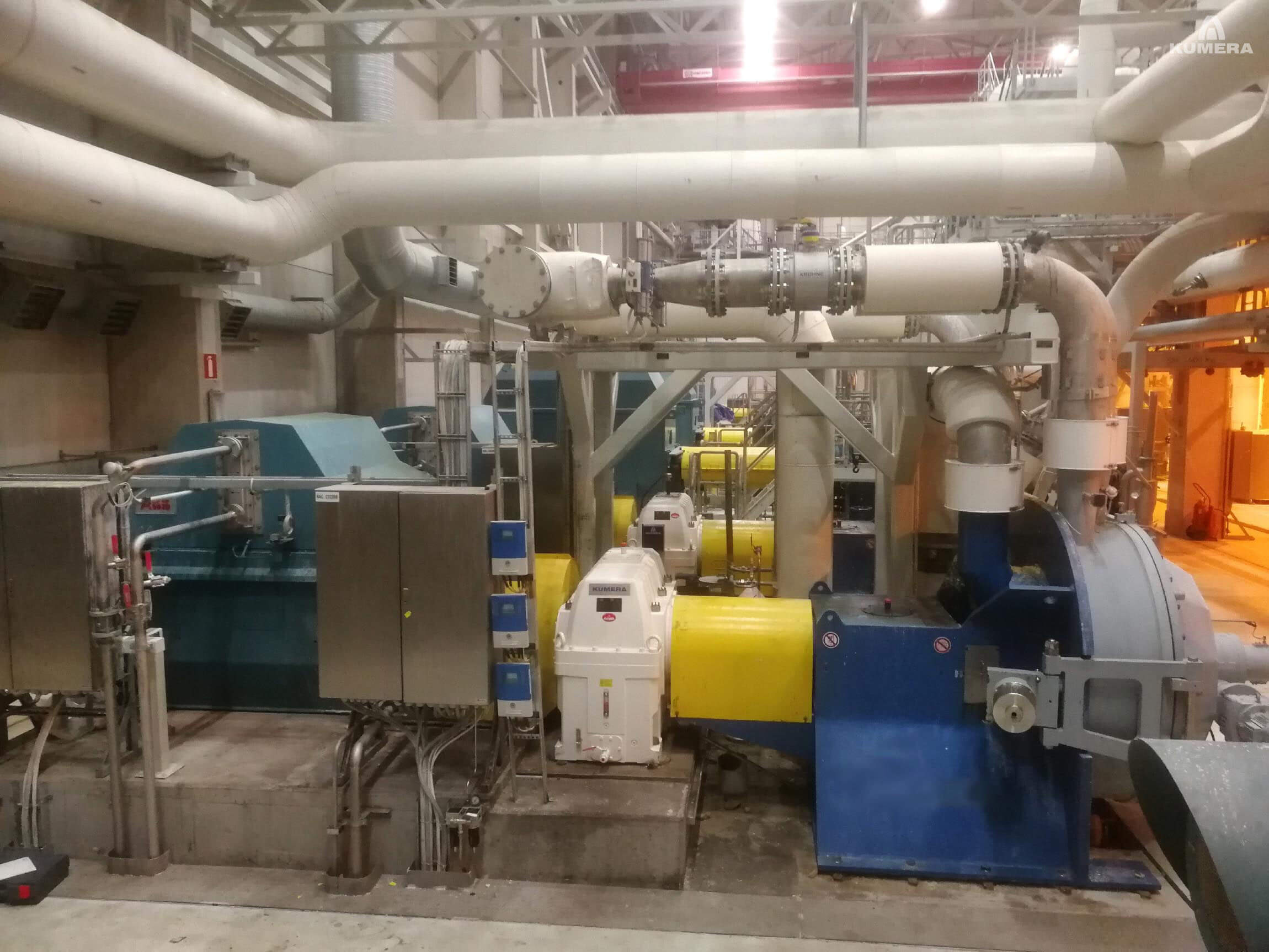

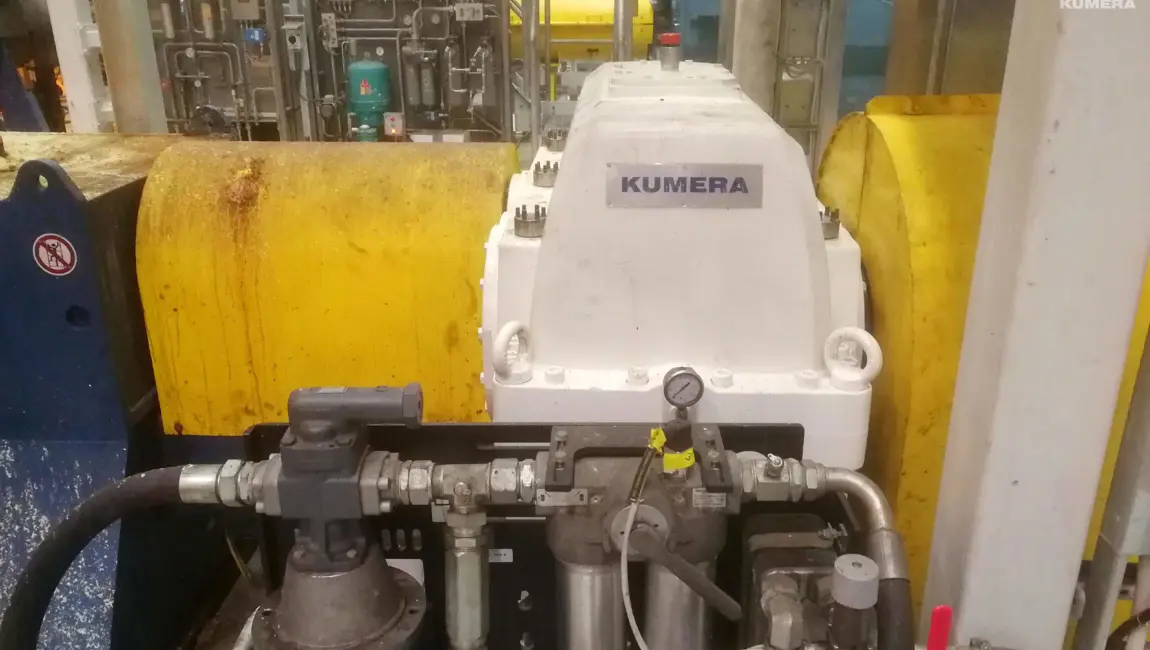

Paper Machine drives
Pulper drives
Vacuum pump drives
Refiner drives
Roll drives
Blowers
Kumera LX-series can be equipped with:

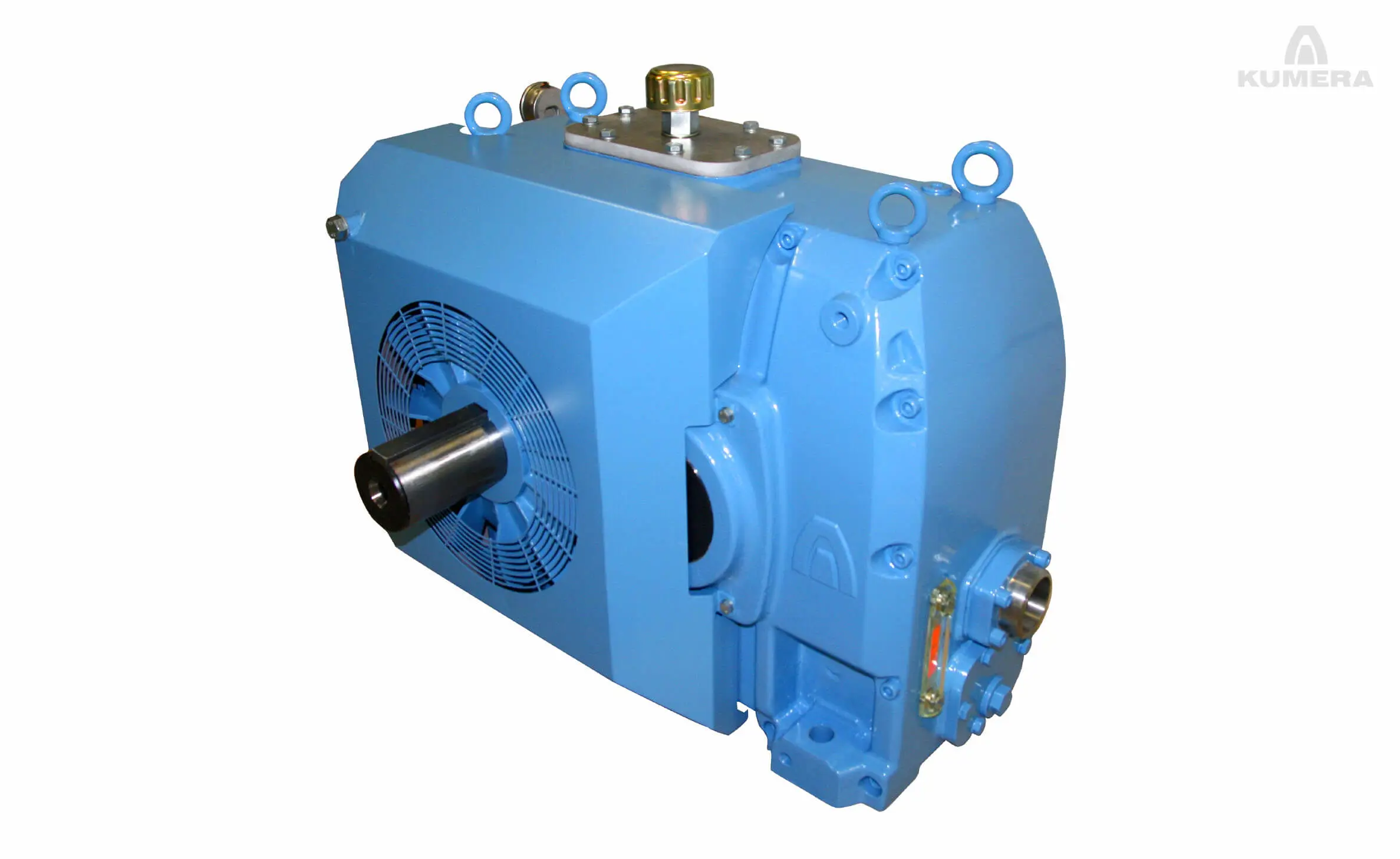

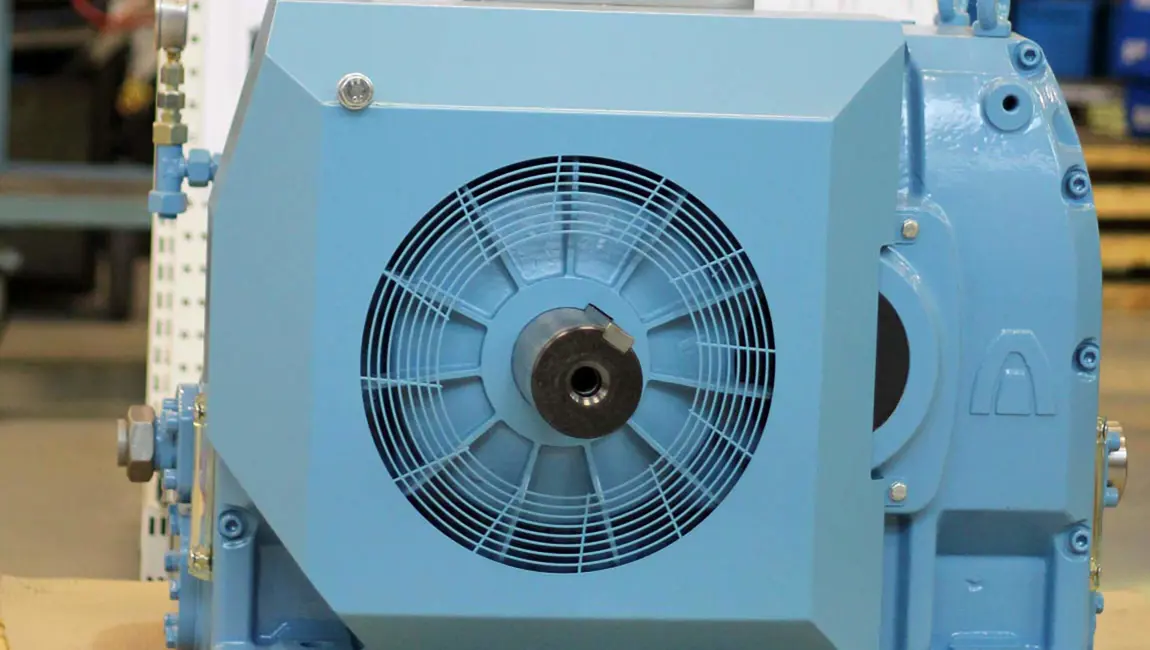

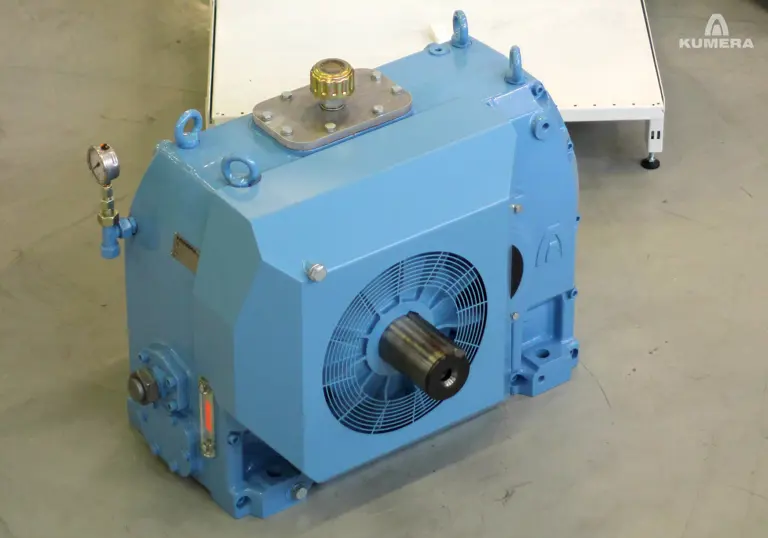

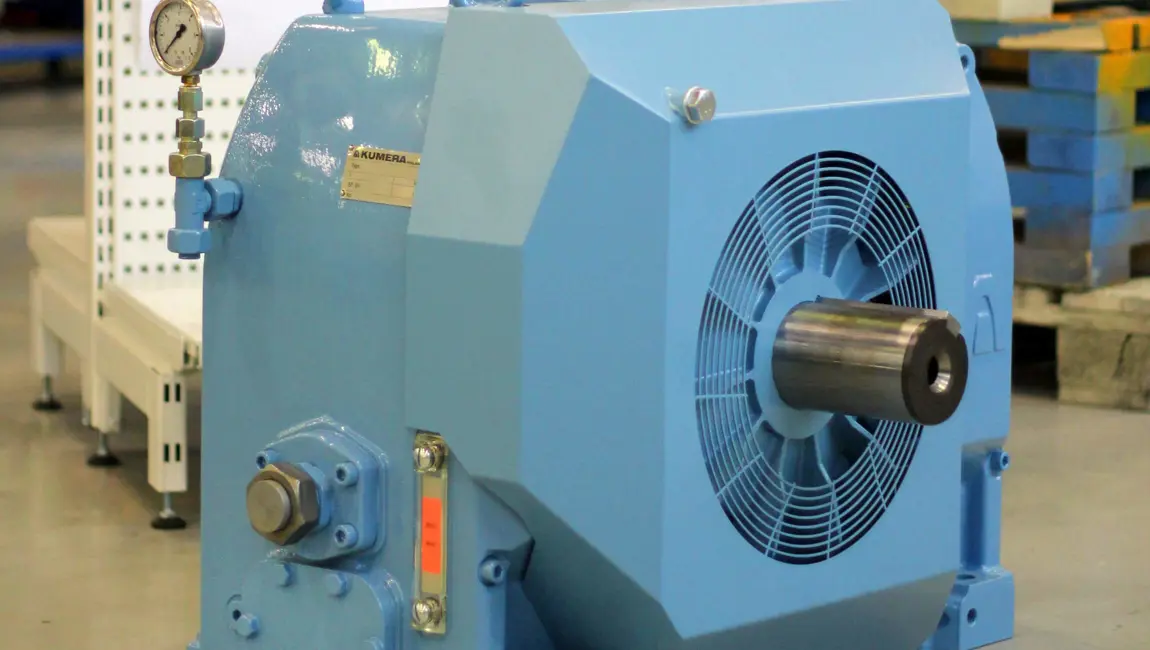

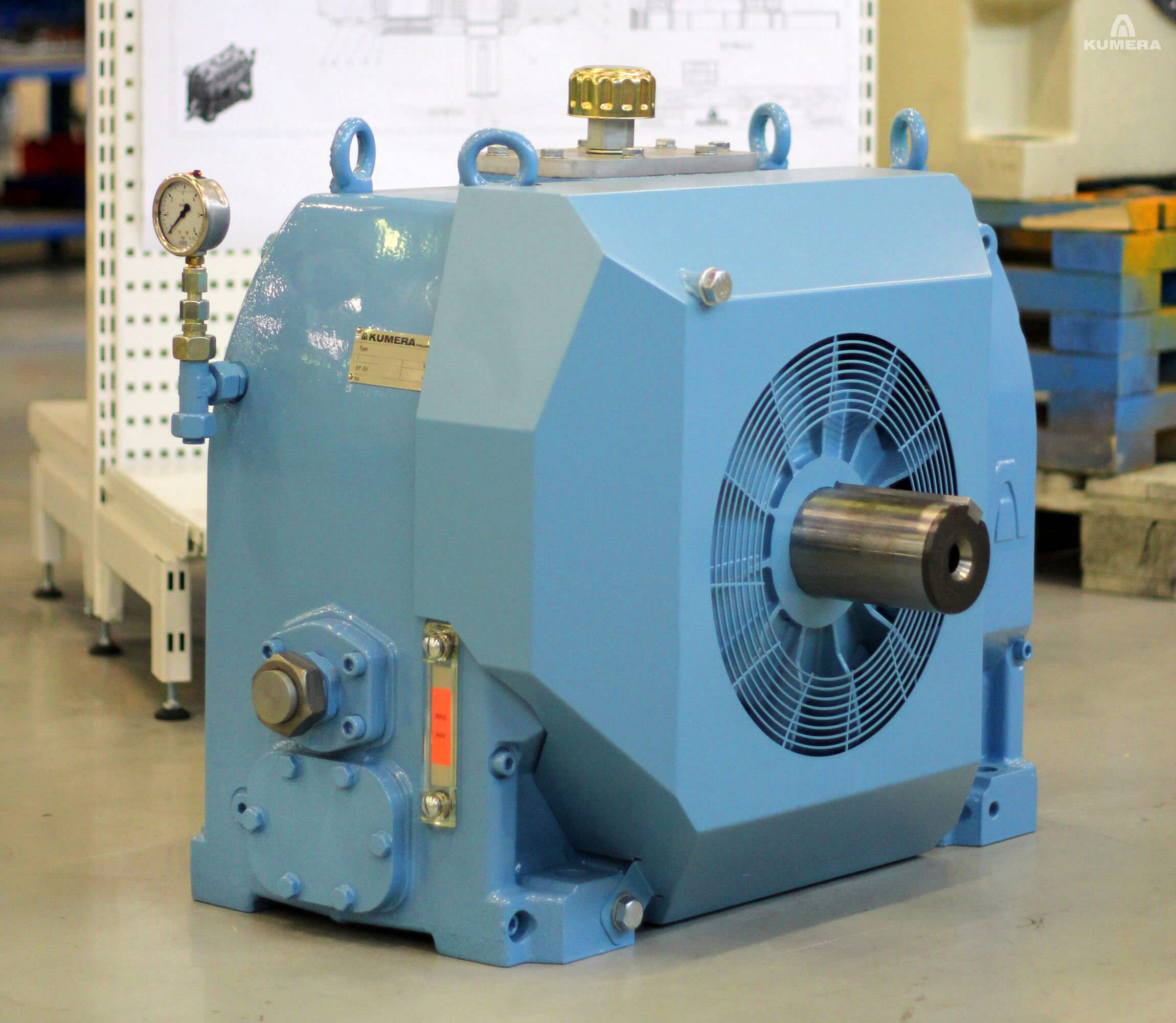

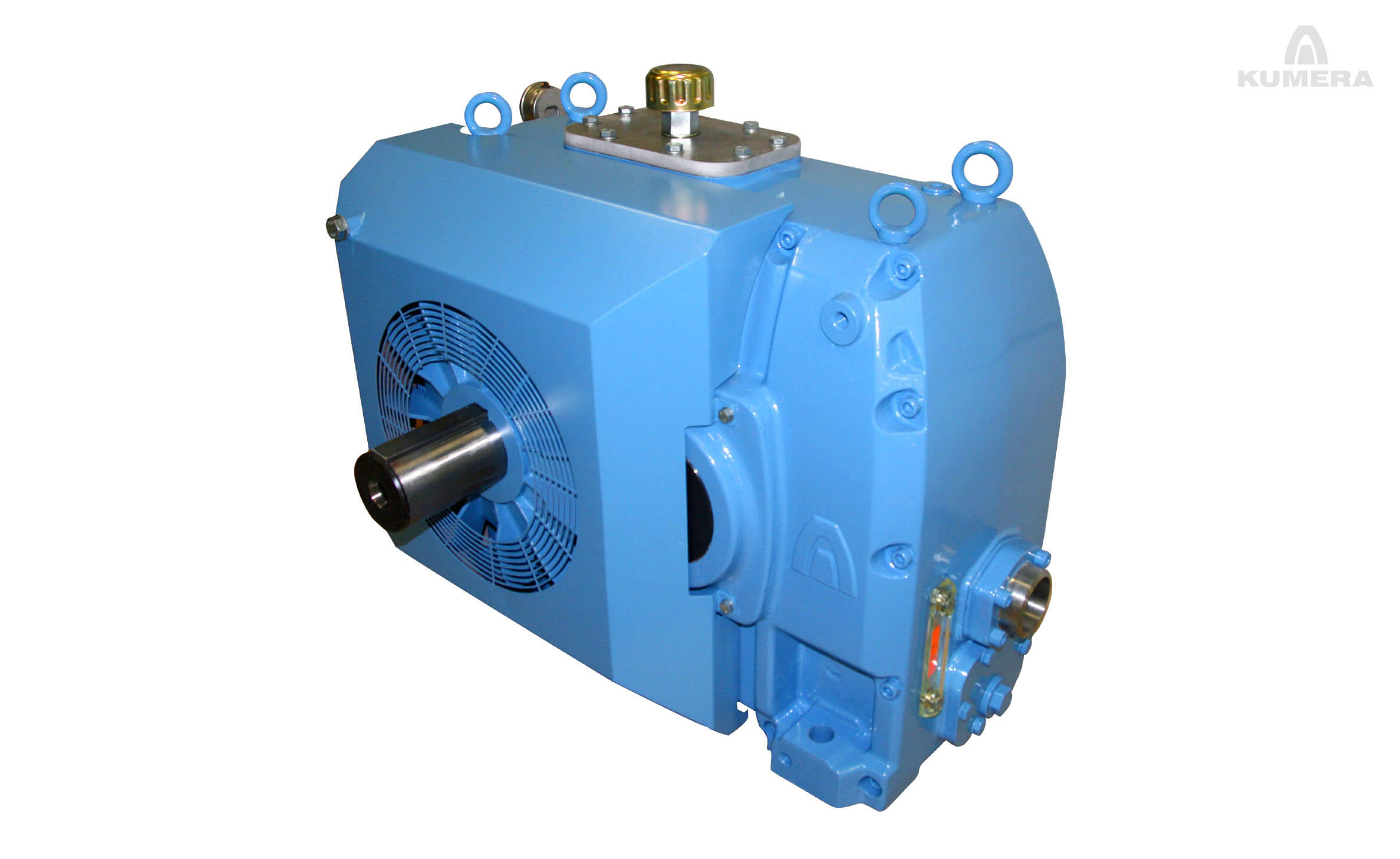

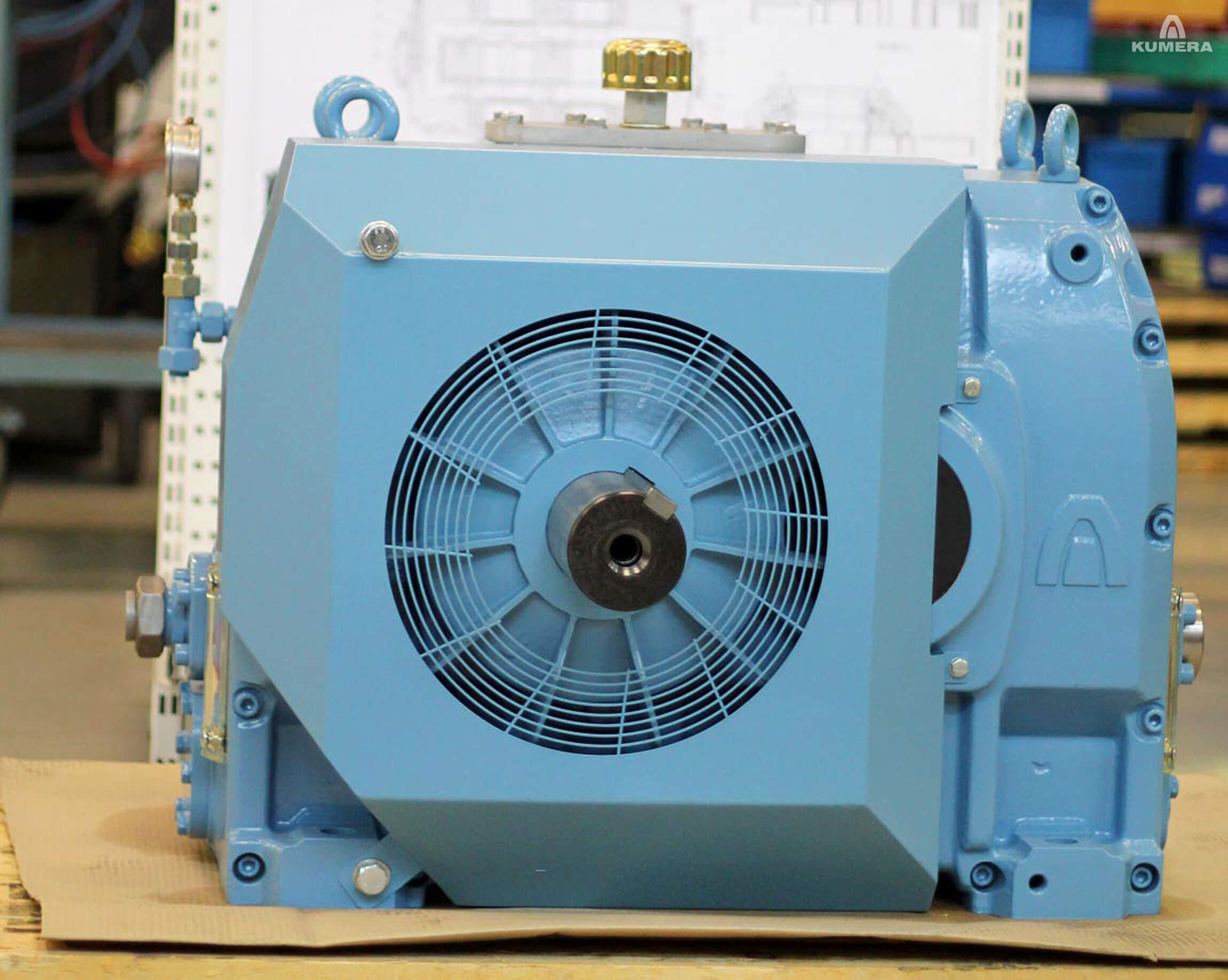

Mechanical fan cooler with air-deflecting cover
Water cooling coil
Heating element
Shaft end pump
Remote condition monitoring: Kumera Guard Gear.
Sales, Service and Maintenance
Contact Sales & ServiceWe at Kumera are happy to serve customers world-wide. Kindly do not hesitate to contact us in any gearbox related issues.
Benefits:
High efficiency – minimizing power loss and saving energy
High thermal capacity – saving costs when cooling units are needed only in few cases
16 gearbox sizes and wide range of ratios – guarantees optimal gearbox size
Maintenance free labyrinth seals – no need for changing the seals
Gearbox configuration at power-plaza.com – serves engineers worldwide and allows downloading 3D-models, dimensional drawings and technical specifications 24 / 7
After Sales Services
Start-up and installation services
Maintenance services
Regular inspection visits
Maintenance consulting services
Original spare parts
24/7 on-call service
