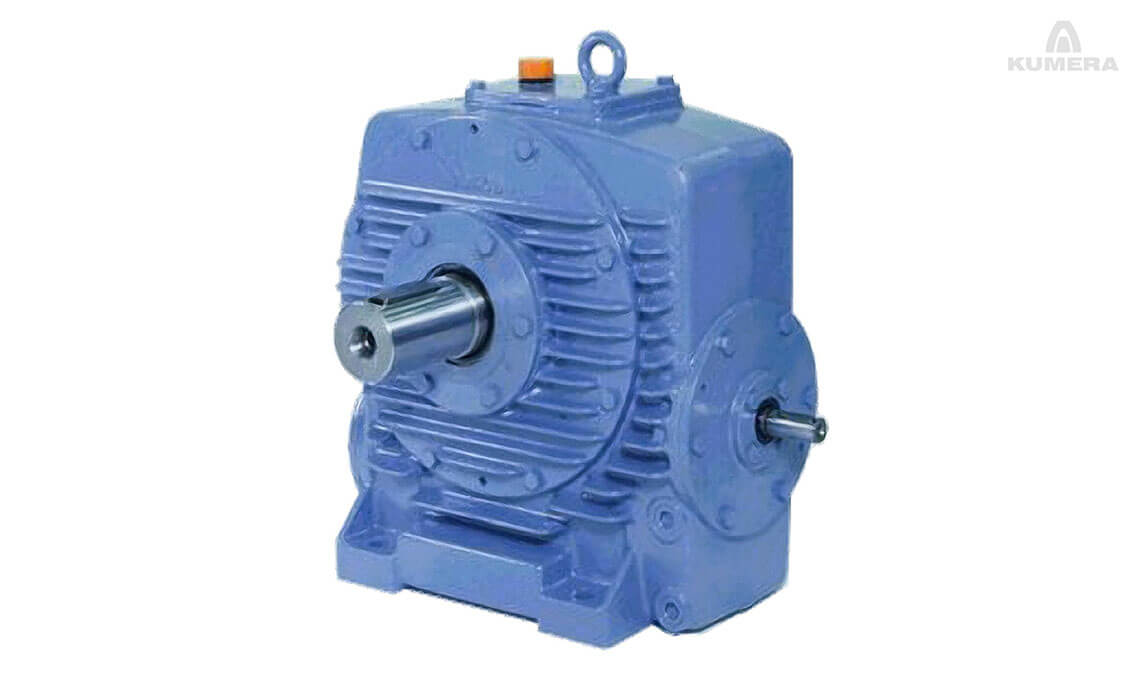

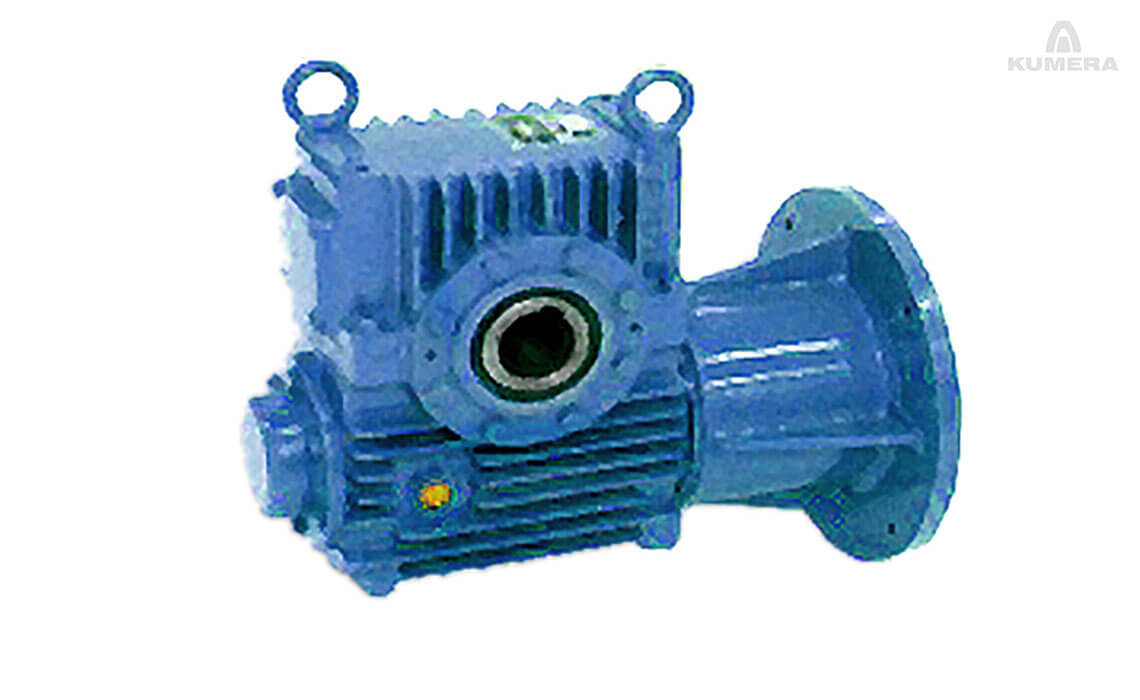

Worm Gearboxes

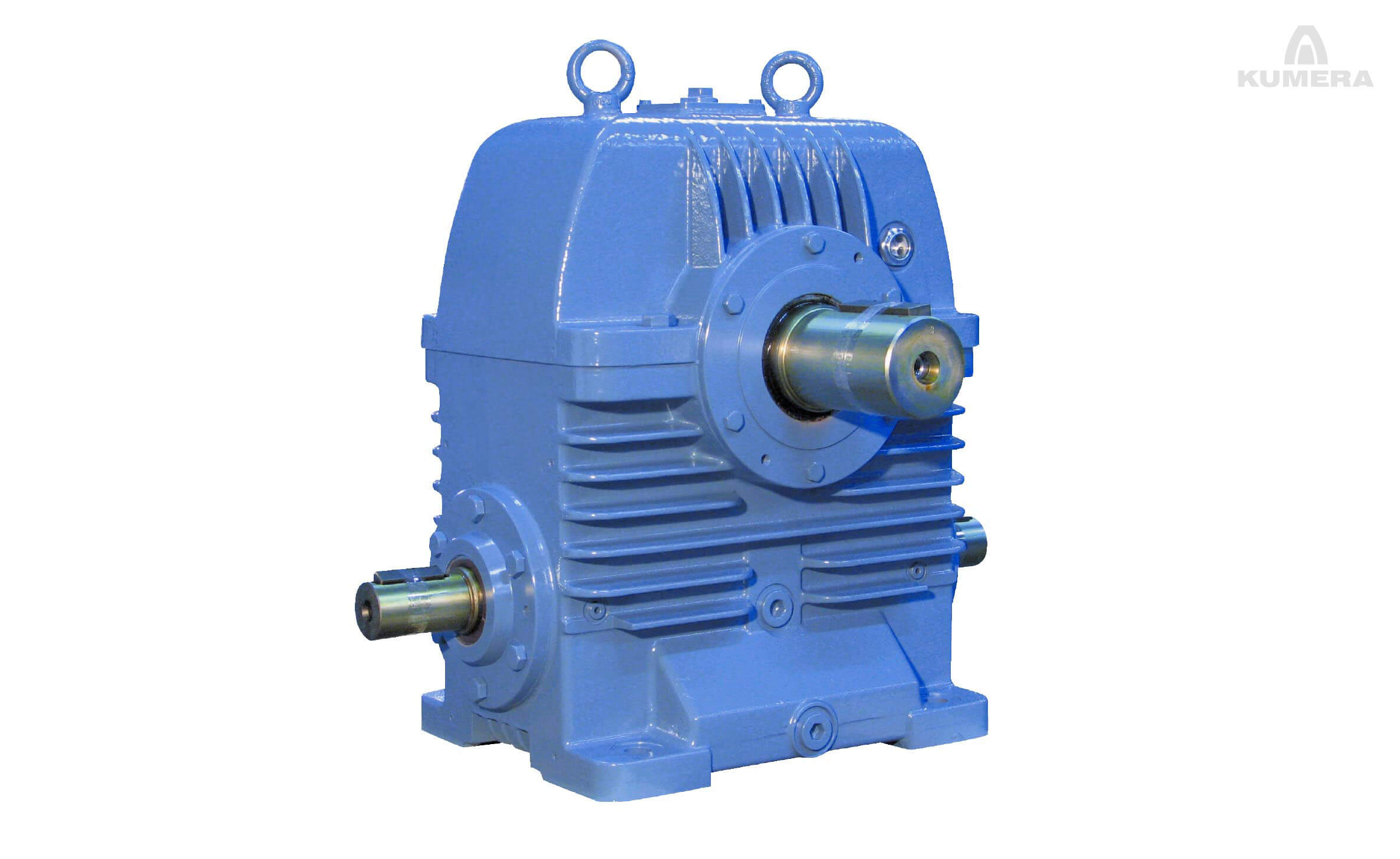

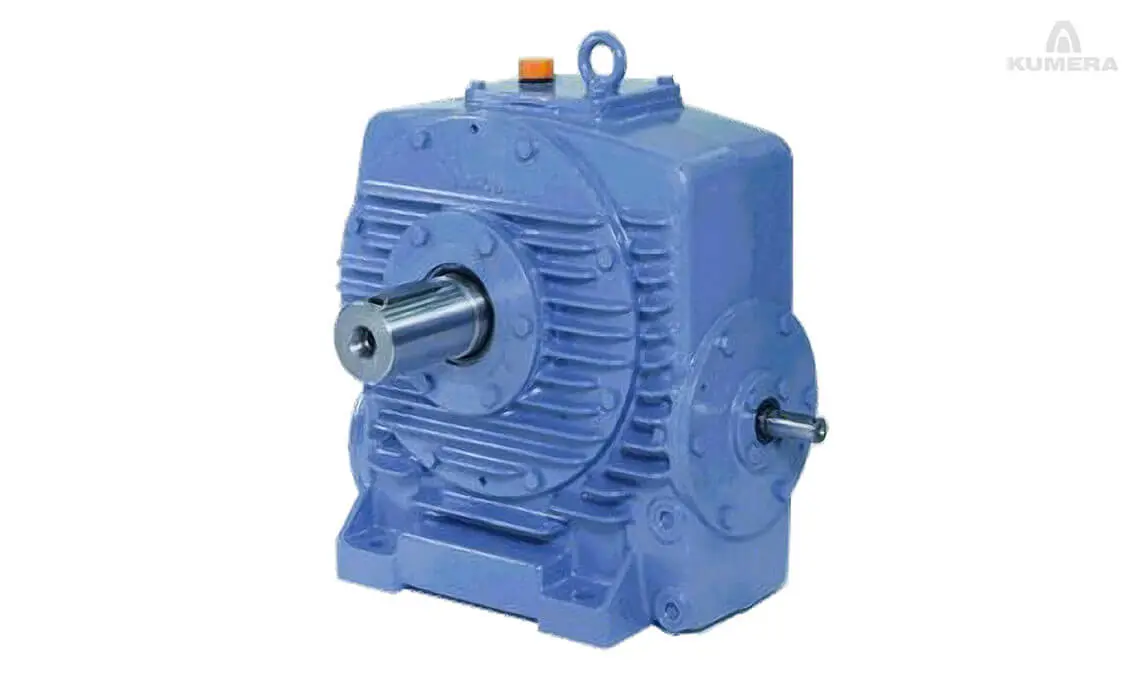

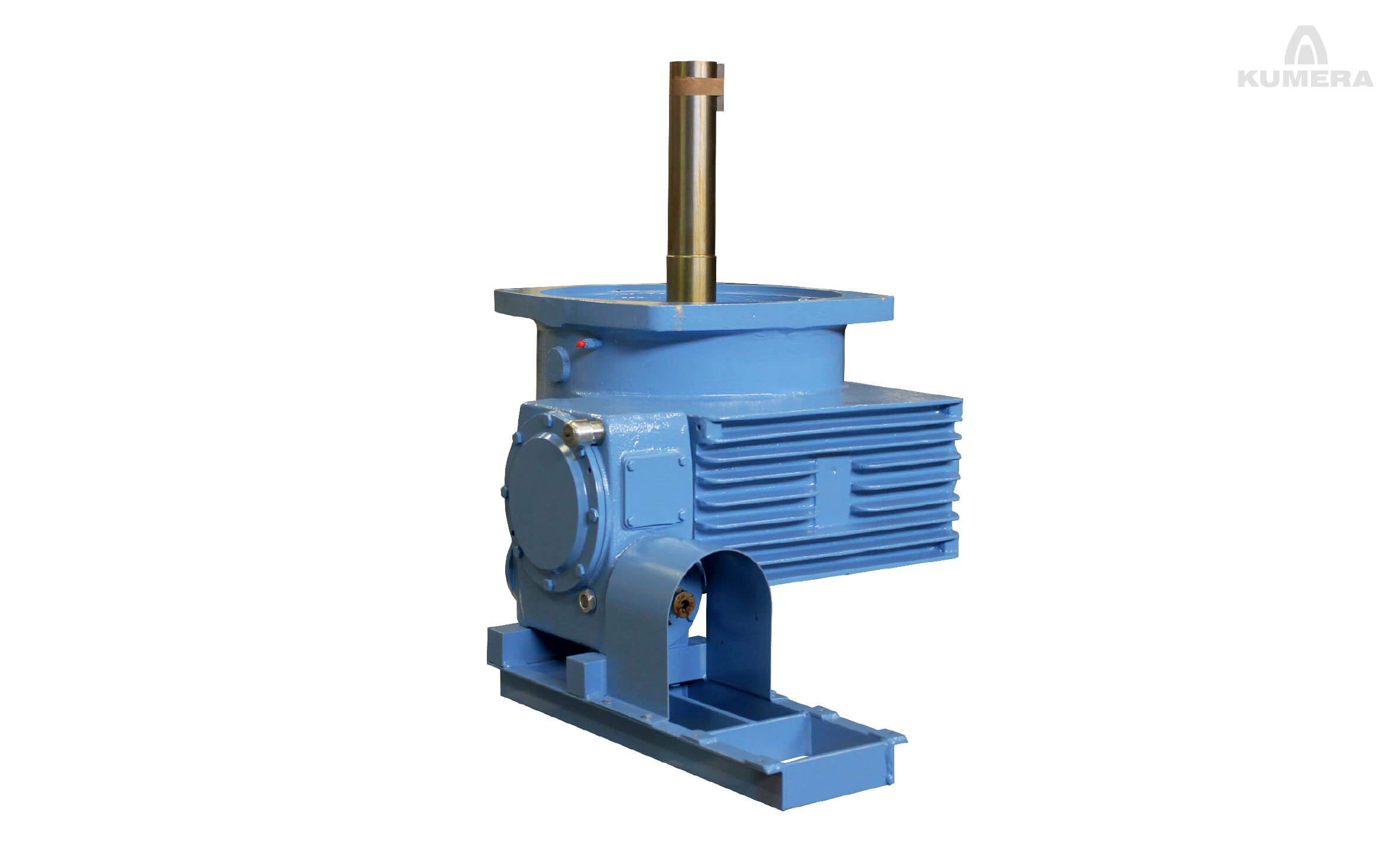

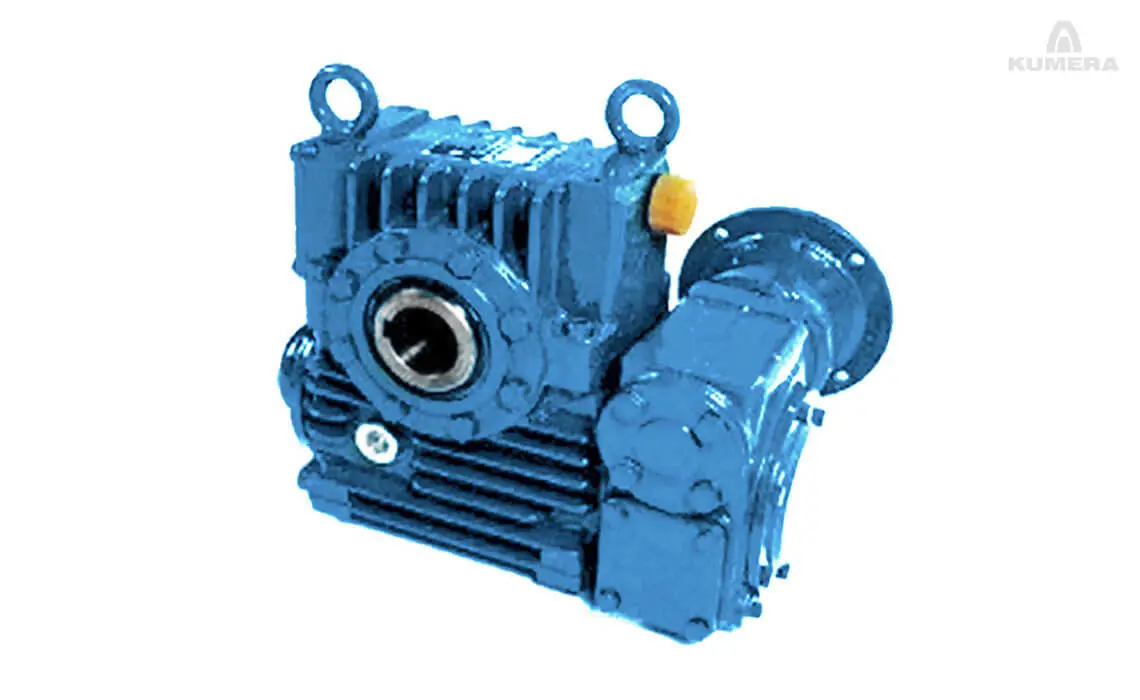

The Covera worm gearbox series is designed especially for non-continuous operation. Thanks to its Concave – Convex tooth profile it can take higher peakloads than conventional profiled worm gears. The reason Covera tooth profile is stronger than a conventional worm tooth profile is that the surface pressure is spread on large area causing a significant surface pressure reduction. The noise level is substantially lower than that of vertical or bevel gears.
The ratio scale from 5:1 to 3550:1 gives a wide selection of exact ratio needs. Whether you need a worm gearbox to jacking systems, bark removal processes, mixer or, for example, a feeder, you can find a suitable Covera gearbox from our product portfolio. Covera gearboxes are made to meet even the roughest requirements.
Technical data:
Nominal torque rating 1 – 35 kNm
Nominal power rating up to 175 kW
Gear ratios from 5:1 to 3550:1 (Catalogue gear ratios)
Shaft center distances from 63 mm to 400 mm
Covera-series is perfect choice for:
Wood handling
Waste water and chemical industry
Mining and mineral industry
Aluminium potlines
Applications:

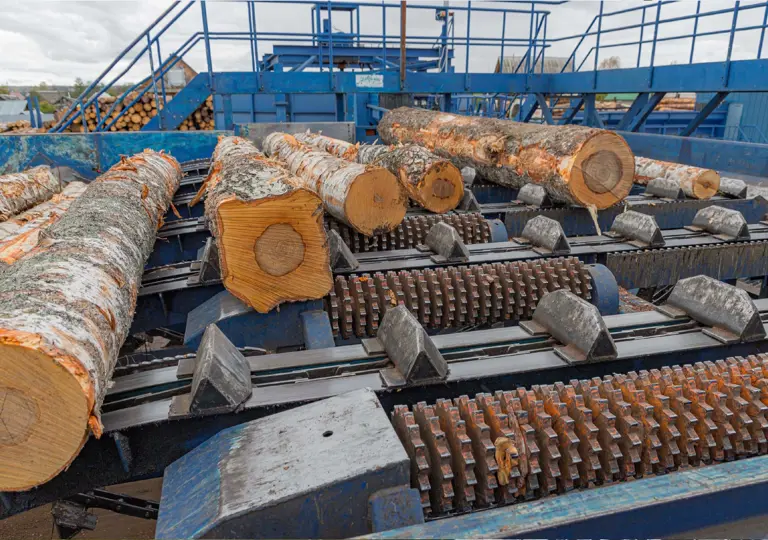

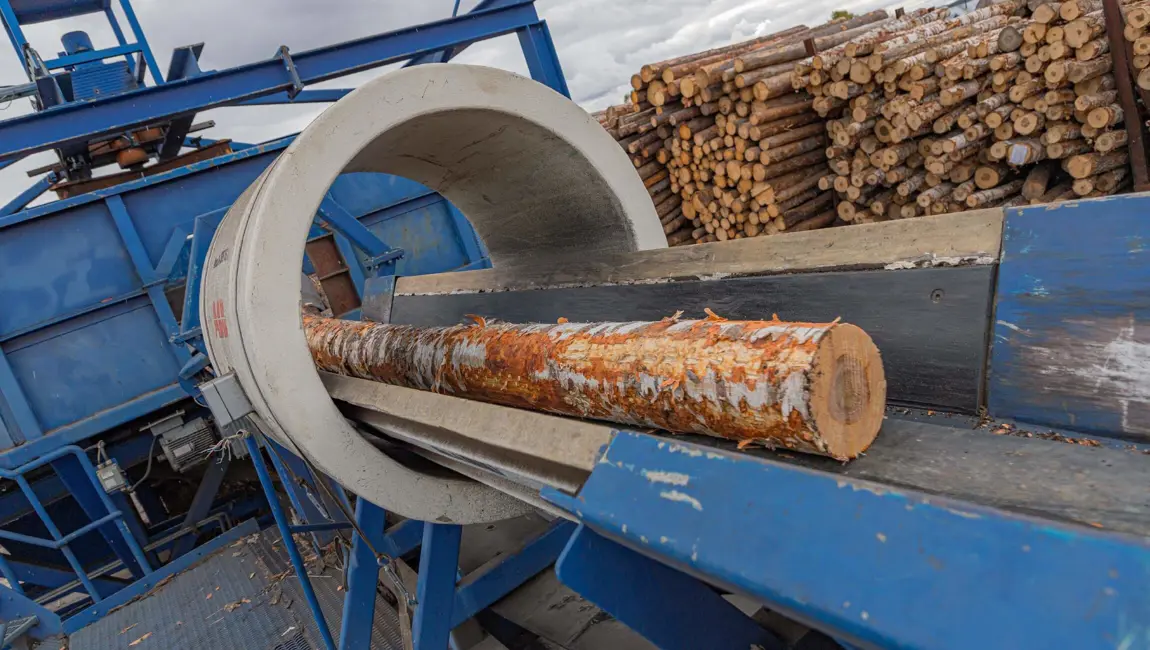

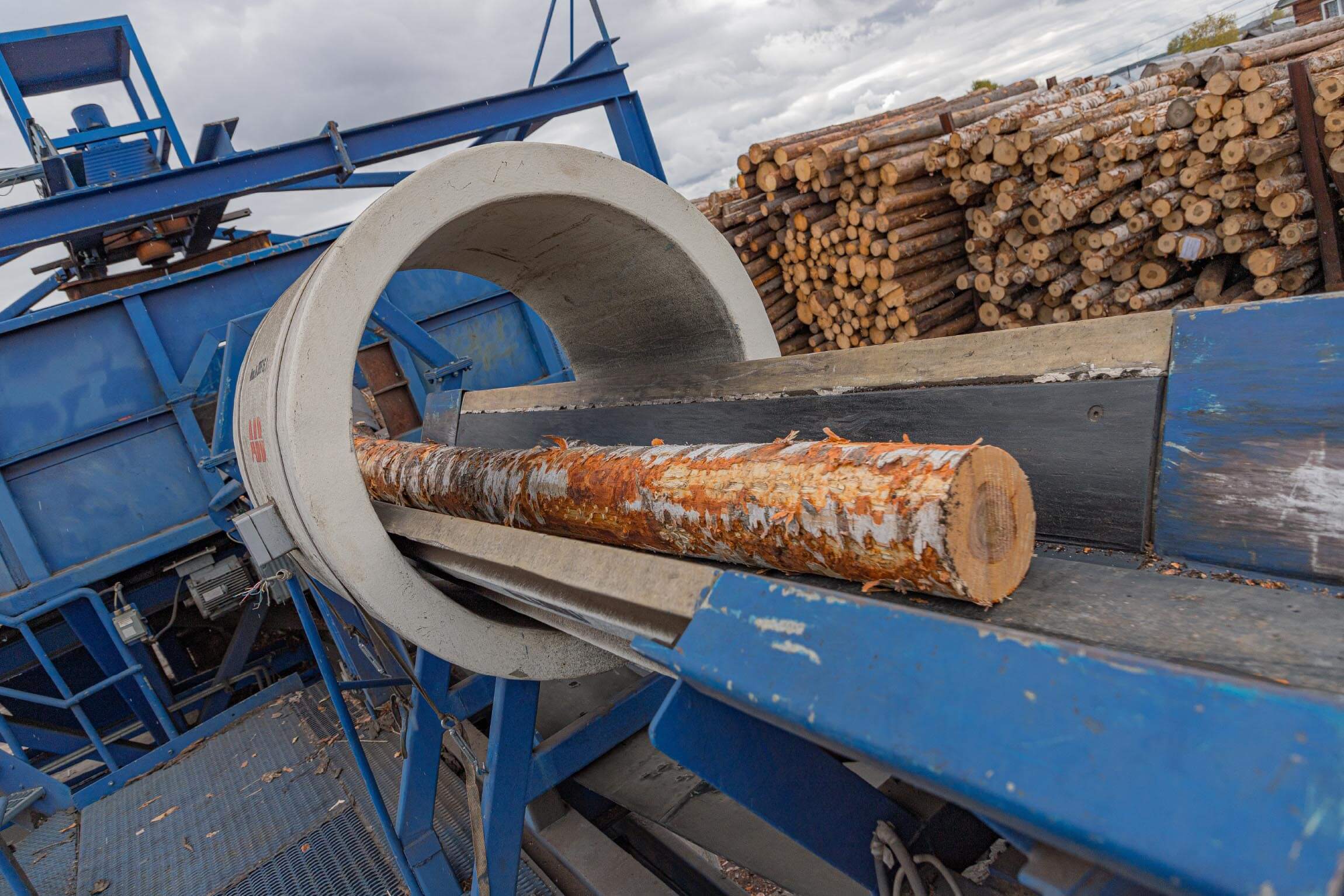

Bark removers
Feeders
Mixers

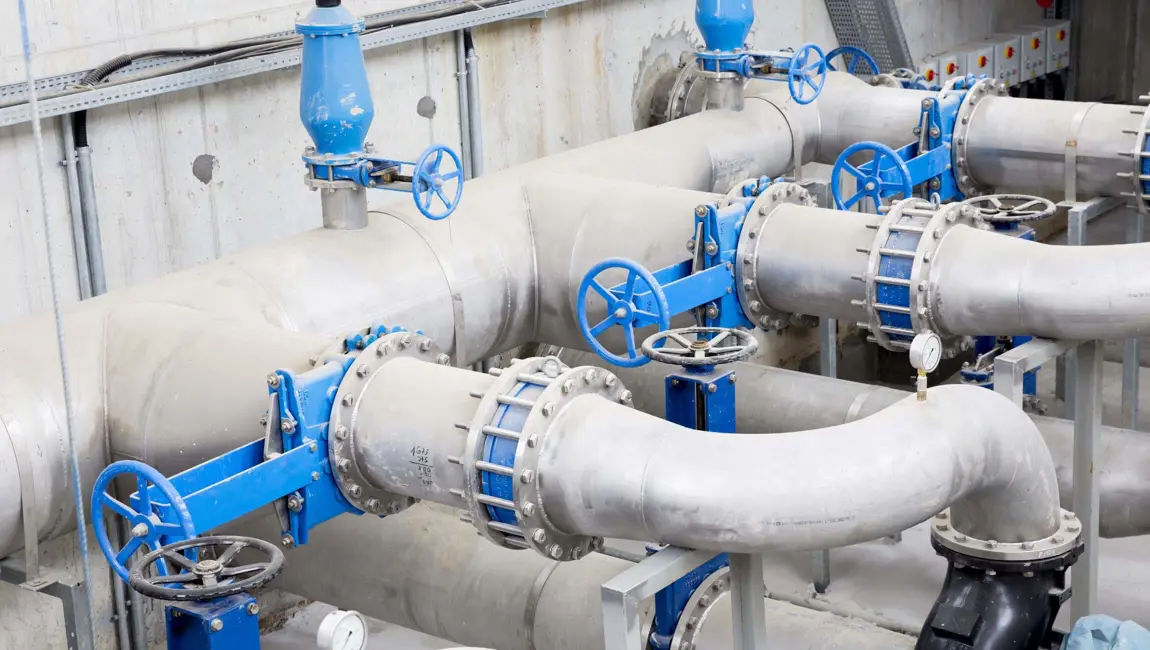

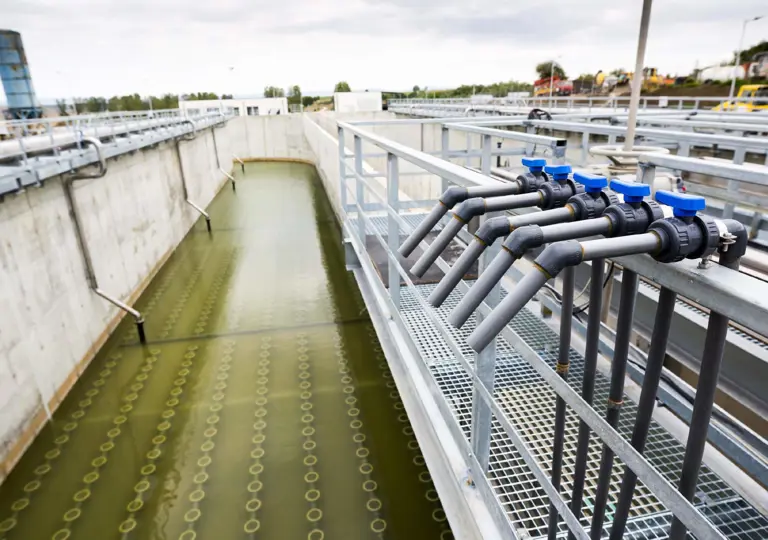

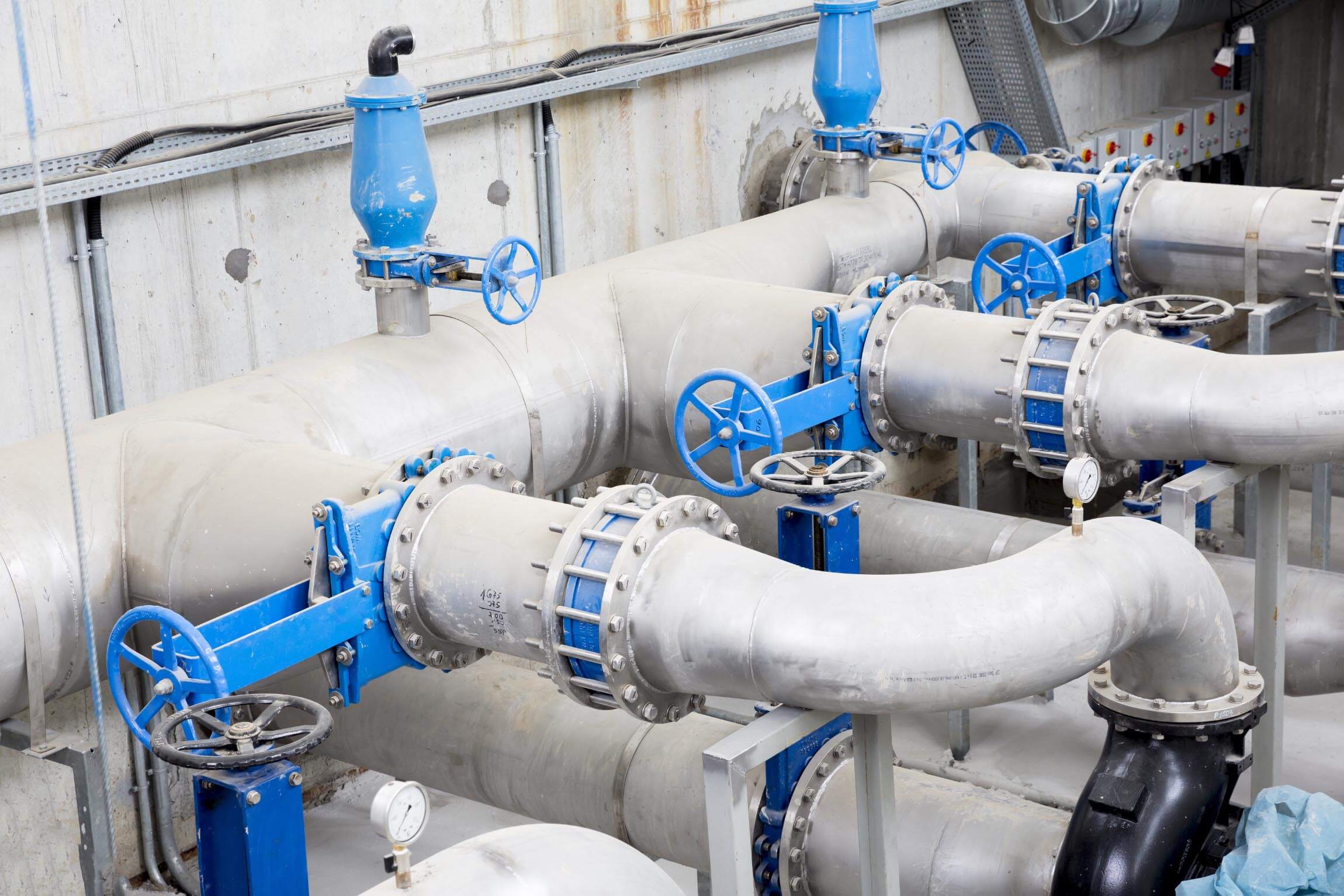

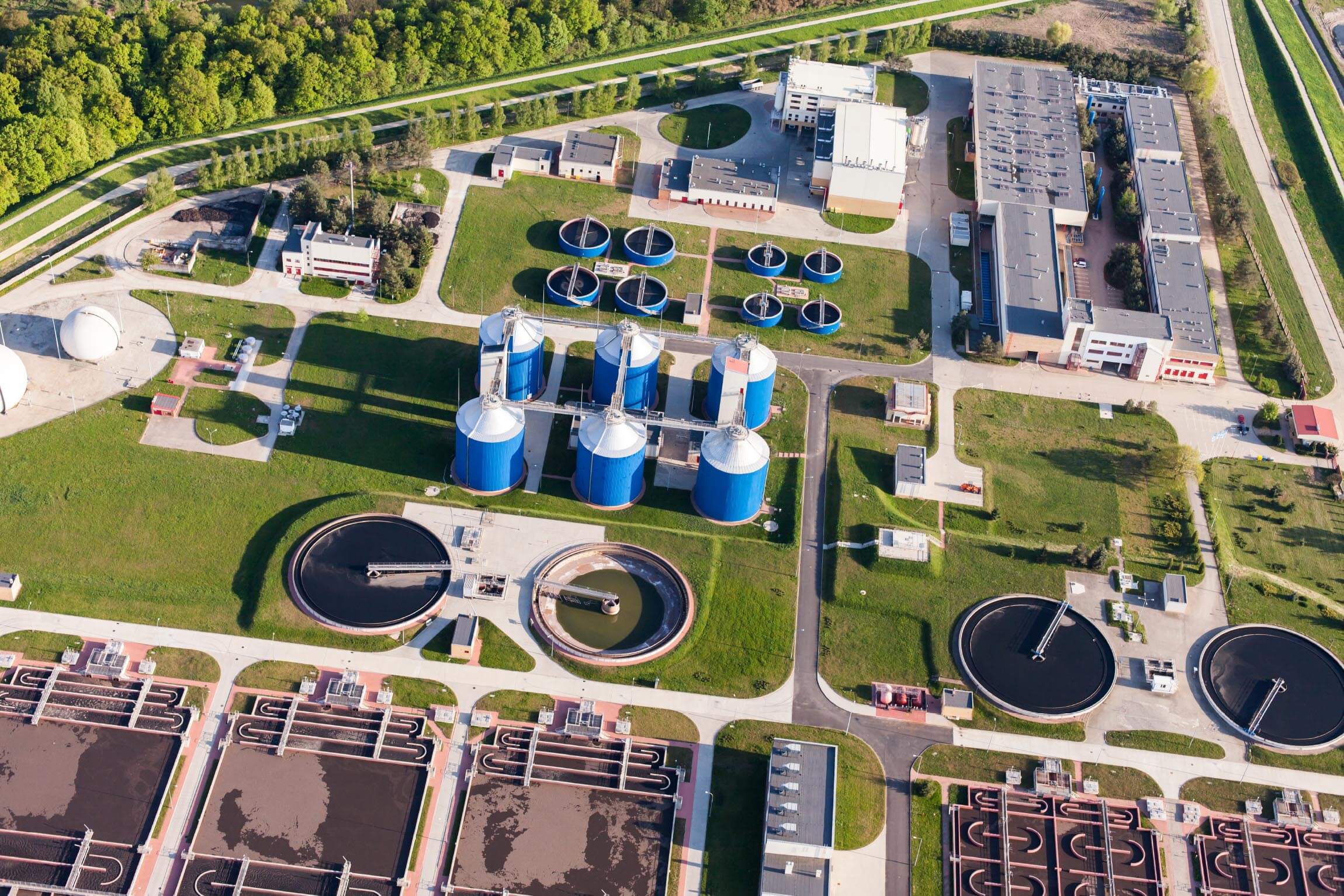

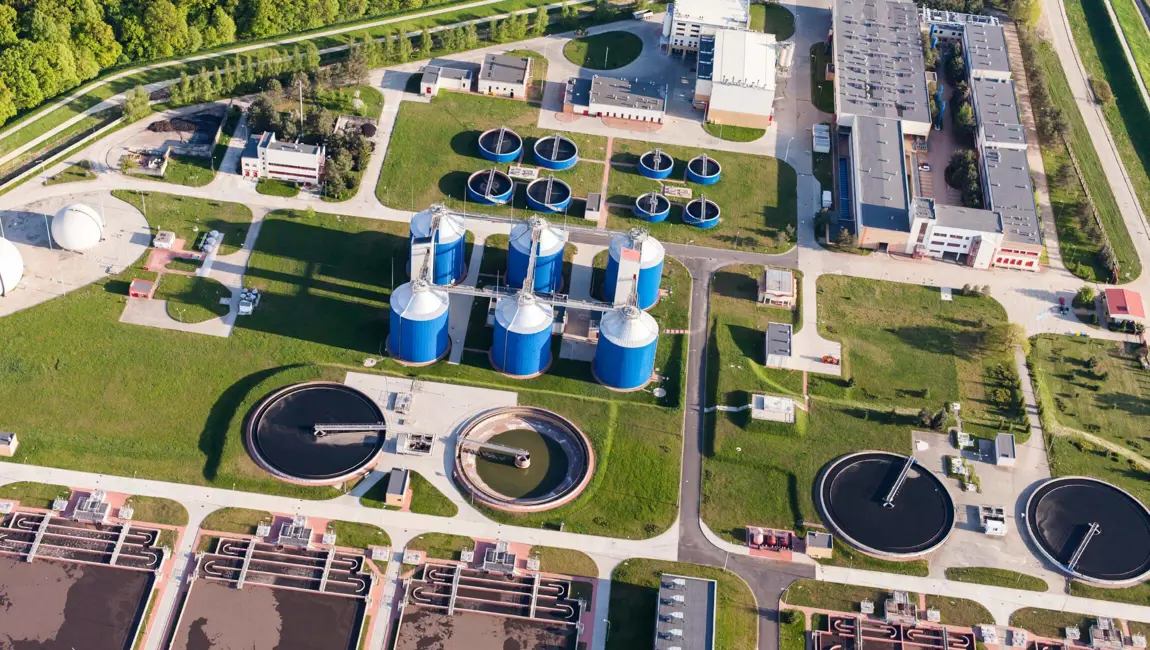

Waste water handling

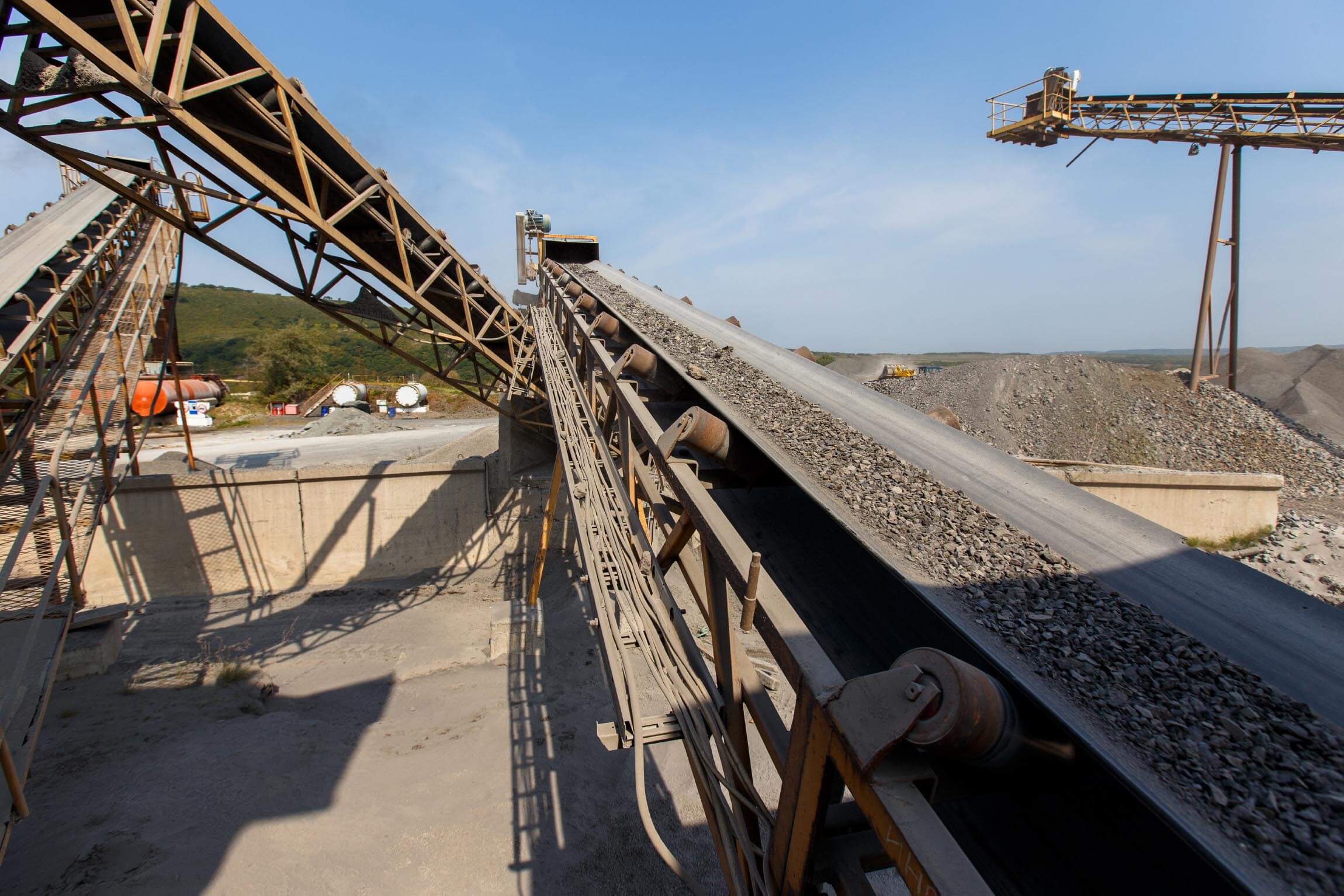

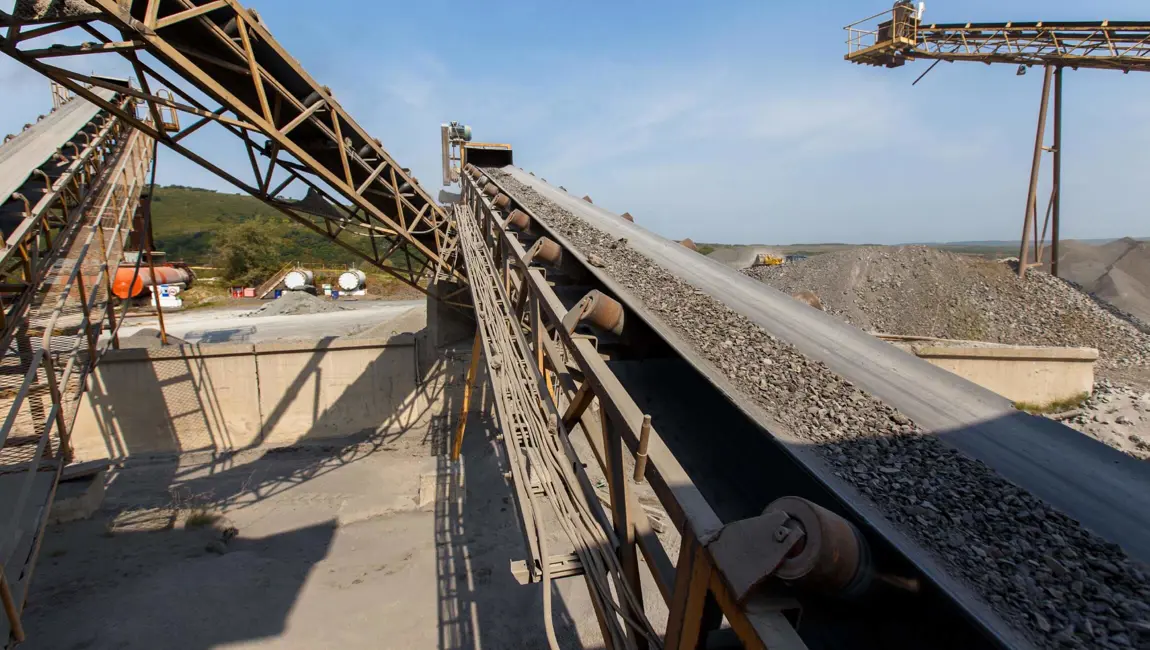

Conveyors
Cranes
Rollers
Escalators
Anode jacking systems
Benefits:
High load carrying capacity
Large ratio scale
Several gearbox types to choose from
Low noise level
Several mounting positions
