Kumera - Front-end Gearboxes

Kumera has designed and manufactured thousands of front-end gearboxes to the maritime segment over the last 50 years, historically also under the brand name Norgear.

With an extensive standard range of front-end gearboxes available we can offer a solution for most applications at competitive prices.

Kumera front-end gearboxes are often used to drive several auxiliary systems per gearbox. The vessels also often mounted with an external firefighting system.

Tailor-made or customized gearboxes may also be designed and manufactured to meet the vessels requirements.

Kumera Marine Division has more than 50 years of experience in designing and manufacturing of gearboxes. There are more than 7.500 gearboxes currently in operation globally in the toughest marine conditions.

Front-end gearbox product codes

FV: vertical shaft offset
FG: horizontal shaft offset
FVC: vertical shaft offset with integrated clutch
FGC: horizontal shaft offset with integrated clutch
FVIC / FGIC: gearboxes with integrated clutch and integrated pump for FiFi

In addition, the products code will contain a number indicating the centre distance between the in and out shafts.

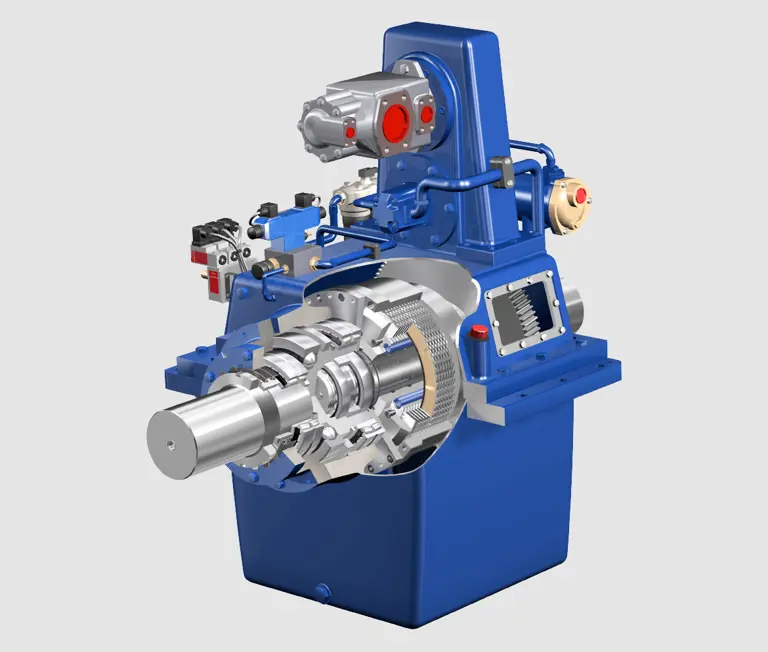

Kumera also delivers a range of clutch units, i.e. gearboxes with an integrated hydraulic clutch, and transmission ratio of 1:1.

Single in - single out, vertical offset (FV)

Kumera has the following standard range of single in – single out, vertical offset gearboxes:

FVC-250
FVEC-260-75
FVEC-260-15
FVIC-275
FVEC-280
FVC-315
FVC-355
FVC-400
FVC-450
FVC-550
FVC-900

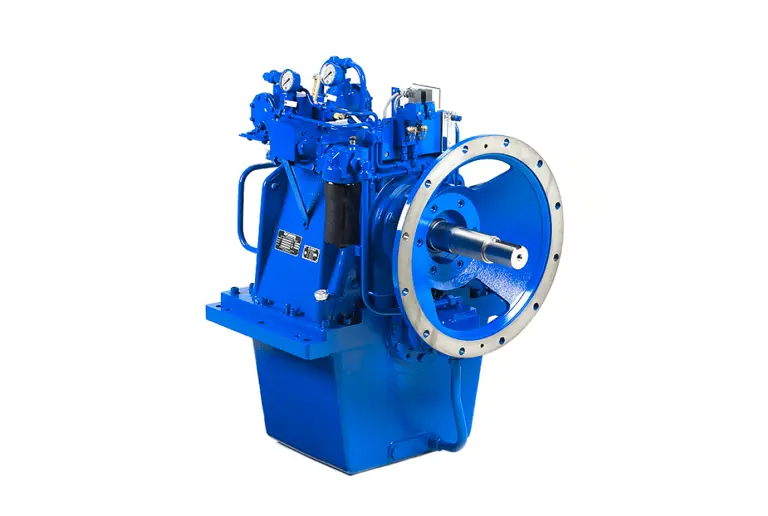

Kumera - Front-end Gearboxes - Standard range - Vertical offset

Note: Underlined models can be delivered with an interface to integrate a FiFi pump to the gearbox

Dimensions FVC, FV

Type	A	B	C	D	F1	F2	G	H	H1	H2	H3	S	T1	T2
-260-75	720	393	45	26	660	189	85	1052	420	45	215	260	24,5	256,5
-260-15	720	393	45	26	660	189	85	1052	420	45	215	260	241,5	286,5
-280	950	530	100	35	850	212	132	1016	450	60	215	280	300	300
-315	950	530	100	35	850	212	132	1070	450	60	215	315	300	300
-355	950	530	100	35	850	212	132	1110	450	60	215	355	300	300
-400	1160	605	105	35	1020	228	150	1410	600	60	300	400	340	340
-450	1160	605	105	35	1020	228	150	1460	600	60	300	450	340	340
-550	1300	800	65	35	1200	330		1440	650	65	330	550	400	400
-900	1400	520	65	35	1300	175	150	1908	600	65	300	900	315	310

Single in - single out, horizontal offset (FG)

Kumera has the following standard range of single in – single out, horizontal offset gearboxes:

2FGC-225
2FGEC-280
2FGEC-2280
2FGEC-2340
2FGC-315
2FGC-355
2FGC-400
2FGC-450
2FGC-500
2FG-2000

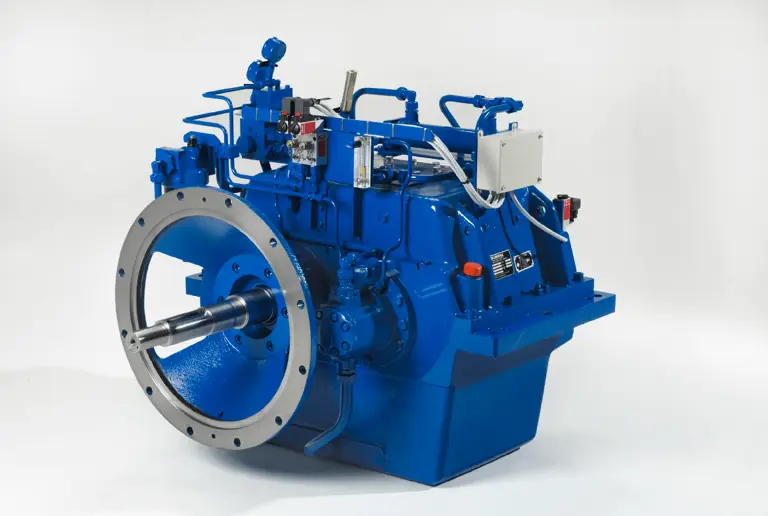

Kumera - Front-end Gearboxes - Standard range - Horizontal offset

Note: Underlined models can be delivered with an interface to integrate a FiFi pump to the gearbox

Dimensions 2FGC, 2FG

Type	A	B	C	D	F1	F2	G	H	H1	H2	H3	P	S	T1	T2
-200	800	350	65	26	720	125	80	621	330	220	40	300	200	205	205
-225	800	350	65	26	720	125	80	621	330	220	40	295	225	205	205
-250	950	430	65	35	870	165	85	791	410	310	40	360	250	250	250
-280	950	430	65	35	870	165	85	791	410	310	40	360	280	250	250
-315	1150	530	80	35	1050	212	100	920	480	350	50	450	315	300	300
-355	1150	530	80	35	1050	212	100	920	480	350	50	450	355	300	300
-400	1400	605	100	35	1300	227,5	112	1160	600	450	60	550	400	340	340
-450	1400	605	100	35	1300	227,5	112	1160	600	450	60	550	450	340	340

Single in - multiple out

Kumera has the following standard range of single in – multiple out gearboxes:

4FGC-280
4FGC-335
4FGC-820
4FGC-1100
6FGC-280
6FGC-335
8FG-280
8FGC-335

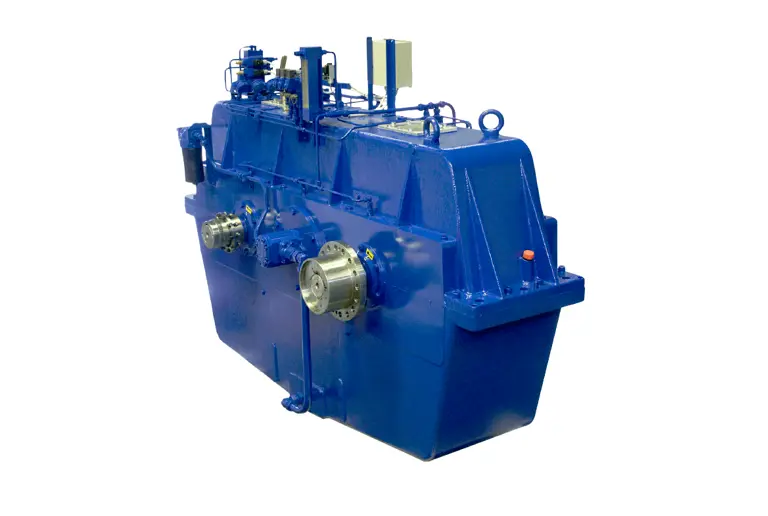

Kumera - Front-end Gearboxes - Standard range - Multiple out

Note: Underlined models can be delivered with an interface to integrate a FiFi pump to the gearbox

Dimensions 8 FGC, 6 FGC, 4FCC, 8 FG, 6 FG, 4 FG

Type	A	B	C	D	E	F1	F2	G	H	H1	H2	H3	H4	H5	P	S1	S2	S3	S4	S5	S6	T1	T2
-280	1100	420	70	25	230	7020	160	85	965	400	35	475	785	295	270	280	280	245,3	135	135	280	250	250
-335	1260	430	70	25	255	1180	160	85	1120	475	35	555	910	345	295	335	335	293,2	162	162	335	250	250
1100	2630	605	60	35	699	2530	227,5	190	N/A	800	60	N/A	1500	610	515	568	534	N/A	N/A	N/A	N/A	302,5	302,5

Clutch units

Kumera has the following standard range of single in – single out, horizontal offset gearboxes:

NKHU-3500
NKHU-7500
NKHU-15000
NKHU-60000

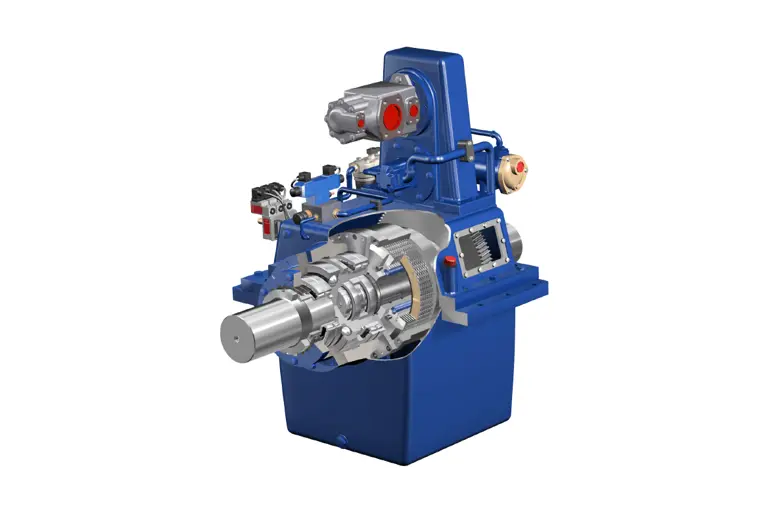

Kumera - Front-end Gearboxes - Clutch unit

Note: Underlined models can be delivered with an interface to integrate a FiFi pump to the gearbox.

	h1	h2	b1	b2	b3	L1	L2	l1	l2	D1	d1	w1	D2	d2	w2	Weight
NKHU-3500	370	500	680	630	75	470	470	320	320	80	71	22	80	71	22	500
NKHU-7500	440	530	680	630	75	530	530	380	380	90	81	25	100	90	28	700
NKHU-15000	440	530	680	630	75	530	585	380	380	110	100	28	125	114	32	750
NKHU-22500	440	530	680	630	75	530	585	380	380	110	100	28	125	114	32	800
