Propeller systems
The product portfolio of Kumera Marine AS in Hjelseth is made up of 3- and 4-bladed propellers designed with the help of modern tailor-made computer programs, and manufactured of high quality materials.
All propeller blades are tailor-made for each vessel and designed by the use of modern design software and experienced designers to fit the vessel perfectly. The propeller hub and pitch-control mechanisms are designed by use of extensive FEM-analysis tools to ensure low weights and sufficient strengths to survive the most hazardous environments.
At Kumera Marine AS in Hjelseth we have a daily based contact with all the important classification societies to ensure the best result for our customers.
High speed propulsion systems
For High Speed Vessels – normally operating at above 25 knots speed – hydrodynamics become much more important for the optimization of the propulsion solution. In addition to the propeller design also the design of brackets, rudders and propeller tunnel has to be optimized. Due to interaction with the hull design, we work closely with the vessel designer on most high speed applications to ensure the most efficient solution.
3H: 3-bladed CP propeller
Controllable pitch, pitch rod
Type | 3-bladed APP |
Prop. dia | 600-1700 mm |
Power range | 150-850 kW |
Speed Range | 20 knots |

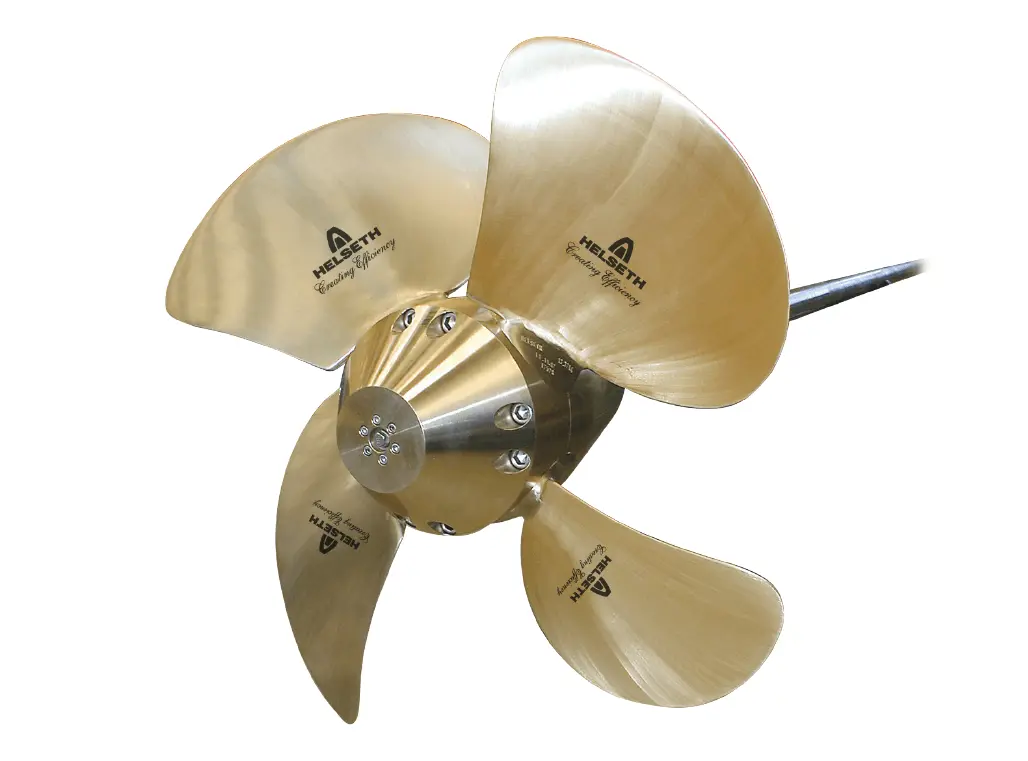

4H: 4-bladed CP propeller
Controllable pitch, pitch rod
Type | 4-bladed CPP |
Prop. dia | 700-1500 mm |
Power range | 200-1700 kW |
Speed Range | 35 knots |

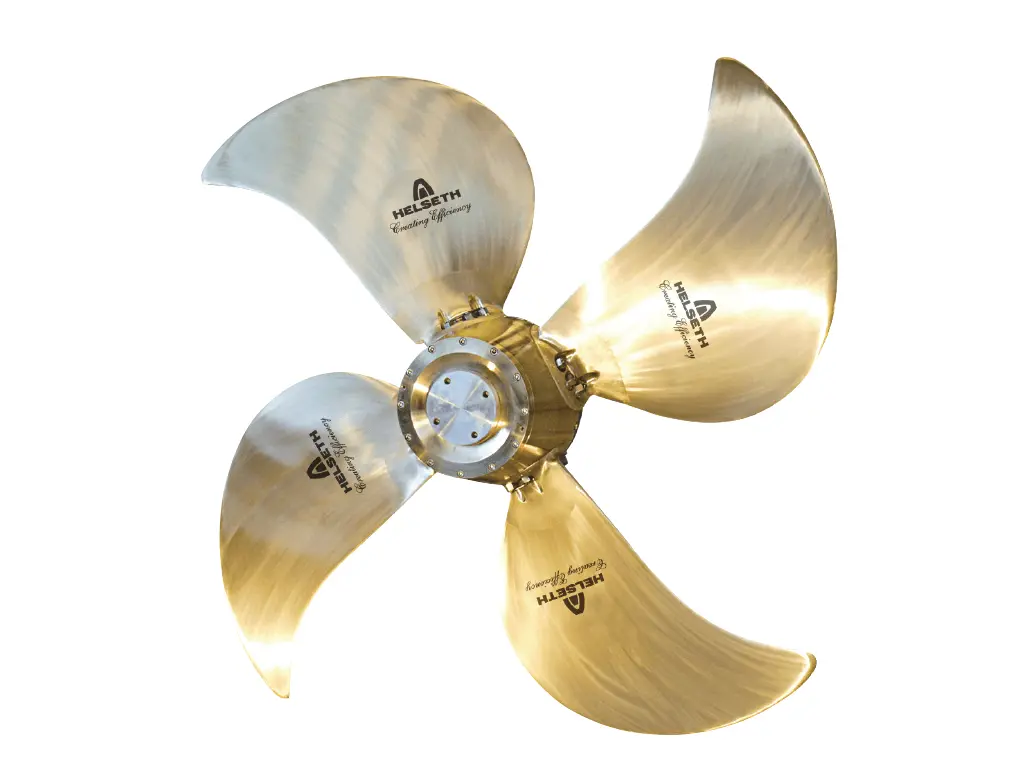

4T: 4-bladed CP propeller
Controllable pitch, pitch rod
Type | 4-bladed CPP |
Prop. dia | 1400-2300 mm |
Power range | 500-2700 kW |
Speed Range | 30 knots |
4TX: 4-bladed CP propeller
Controllable pitch, pitch rod
Type | 3-bladed APP |
Prop. dia | 2200-4400 mm |
Power range | 800-4000 kW |
Speed Range | 20 knots |

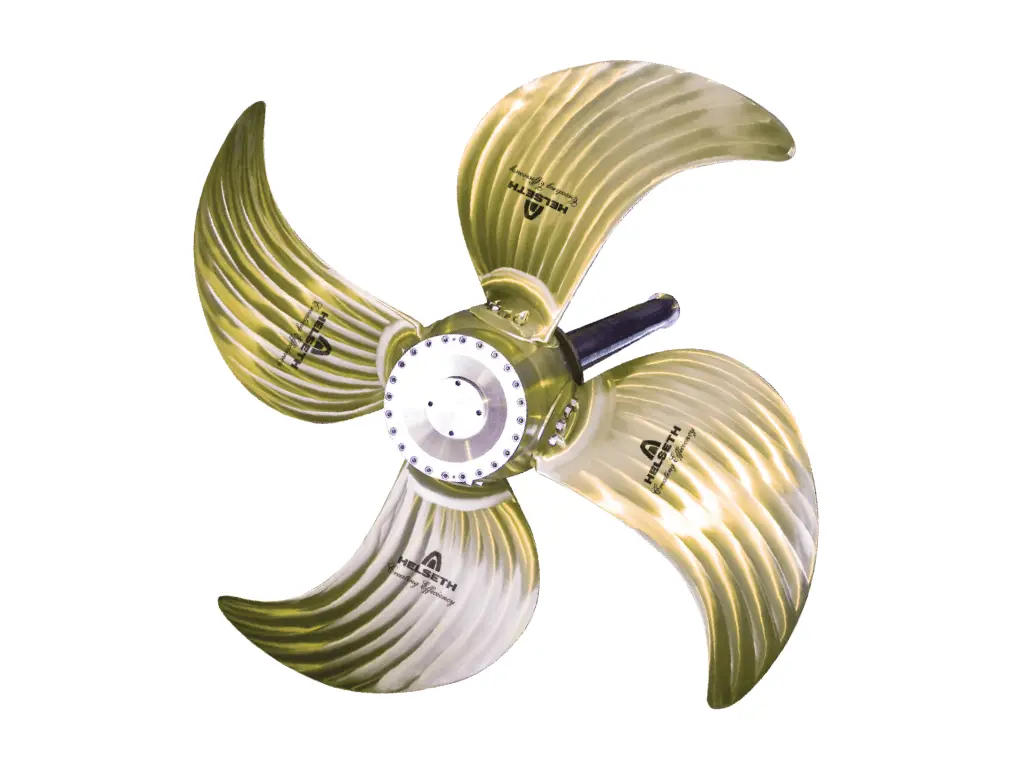

4SX: 4-bladed CP propeller
Controllable pitch, pitch rod
Type | 4-bladed CPP |
Prop. dia | 2200-4400 mm |
Power range | 800-4500 kW |
Speed Range | 20 knots |
References - Kumera Marine AS in Hjelseth
During its 100 years of existence, Kumera Marine AS in Hjelseth has delivered more than 8000 propellers. Presented here, is a selection of vessels, each representing a field with special requirements.
Various boats and ships with Kumera Helseth propellers

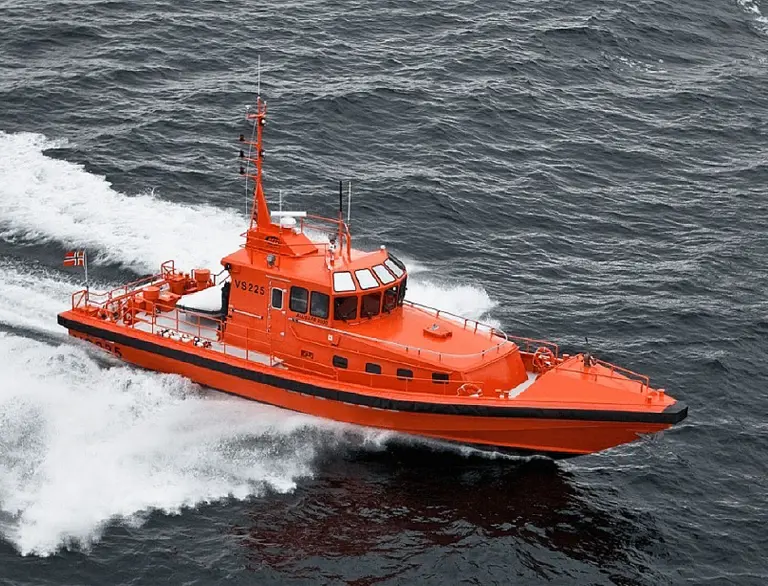

Alusafe 2000
Name: Alusafe 2000
Vessel type: Rescue Vessel
LOA, m: 20,2
Engine power, kW: 2 x 552
Speed, knots: 30
Propeller type: 4J70
Diametre, mm: 750
Classification: DNV
Shipyard: Maritime Partner, Norway

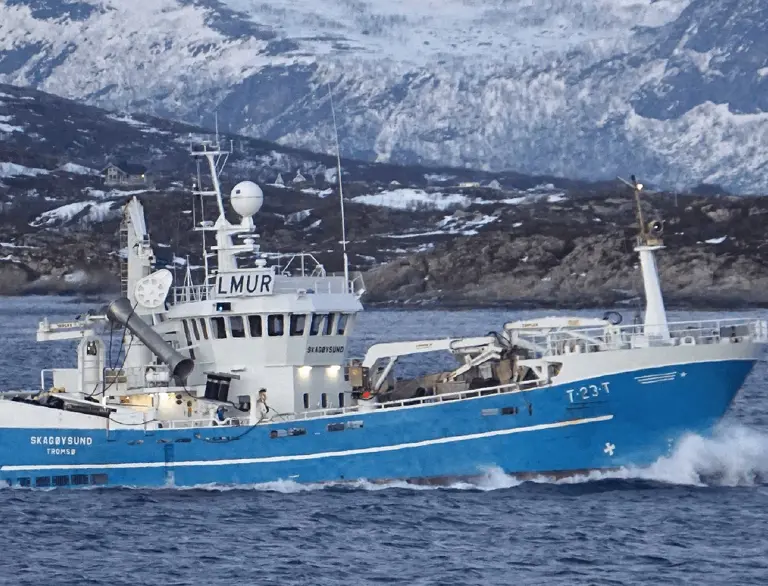

Skagøysund
Name: Skagøysund
Vessel type: Fishing Vessel
LOA, m: 27,5
Engine power, kW: 1040
Speed, knots: 12,5
Propeller type: 4TX550/180
Diametre, mm: 2400
Classification: DNV
Shipyard: Vaagland, Norway

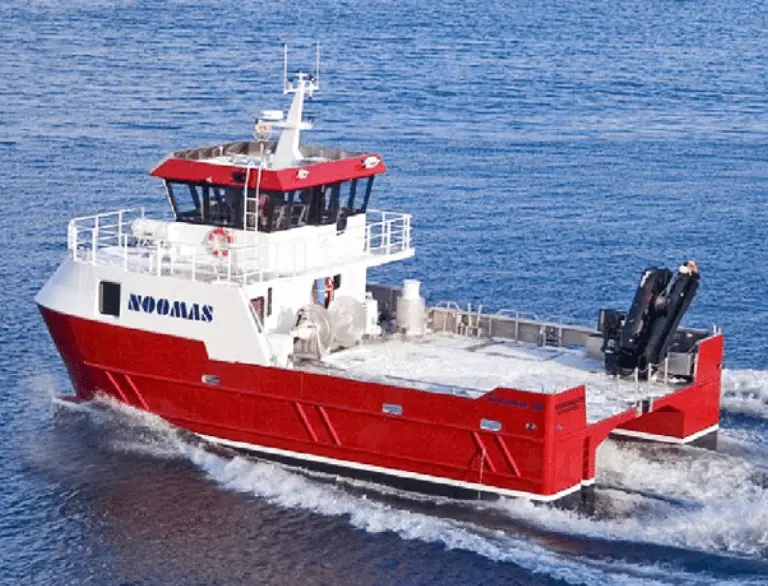

Fosnakallen
Name: Fosnakallen
Vessel type: Work Boat
LOA, m: 14,9
Engine power, kW: 2 x 525
Speed, knots: 22
Propeller type: 4H90
Diametre, mm: 1050
Classification: NSK
Shipyard: Folla Maritime, Norway

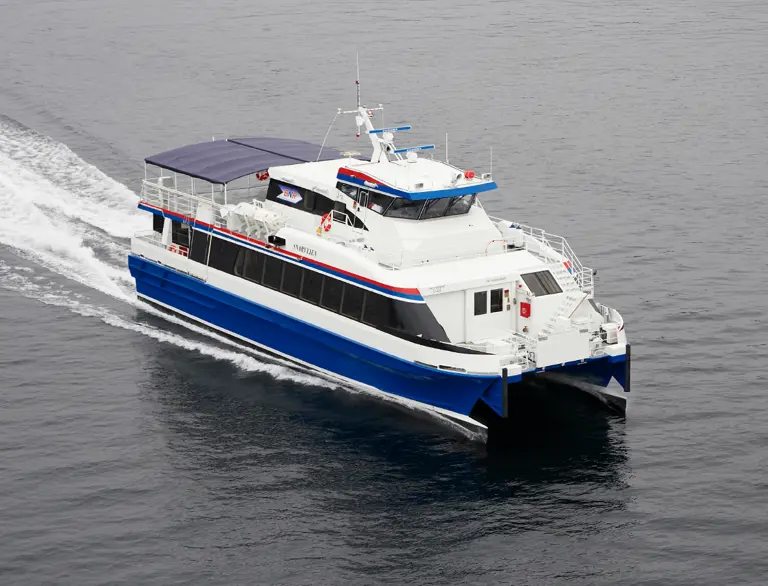

Snarveien
Name: Snarveien
Vessel type: Passenger Catamaran
LOA, m: 26
Engine power, kW: 2 x 550
Speed, knots: 27
Propeller type: 4H80
Diametre, mm: 975
Classification: DNV
Shipyard: Oma Baatbyggeri, Norway

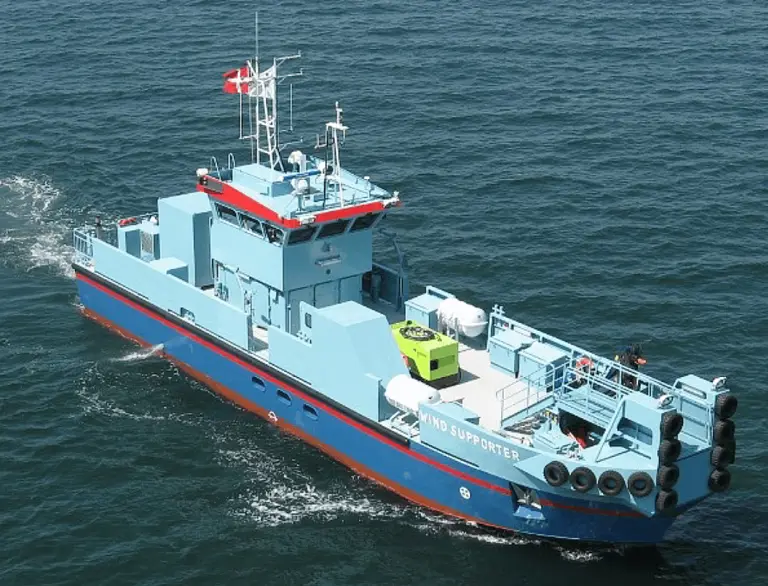

Wind Supporter
Name: Wind Supporter
Vessel type: Wind Farm Service Vessel
LOA, m: 24,0
Engine power, kW: 2 x 552
Speed, knots: 12,5
Propeller type: 4H90
Diametre, mm: 1050
Classification: DNV
Shipyard: Swedeship, Sweden

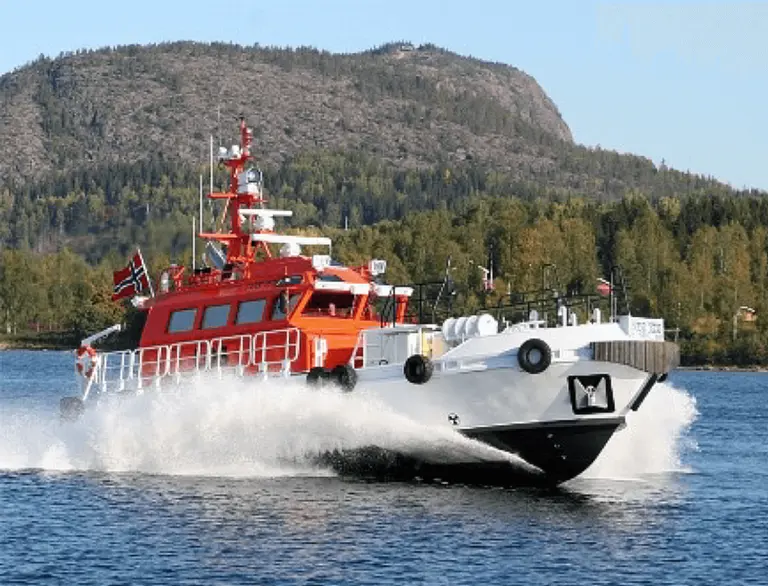

Los 117
Name: Los 117
Vessel type: Pilot Boat
LOA m: 16,7
Engine power kW: 810
Speed knots: 22
Propeller type: 4H100
Diametre mm: 1050
Classification: DNV
Shipyard: Dockstavarvet, Sweden

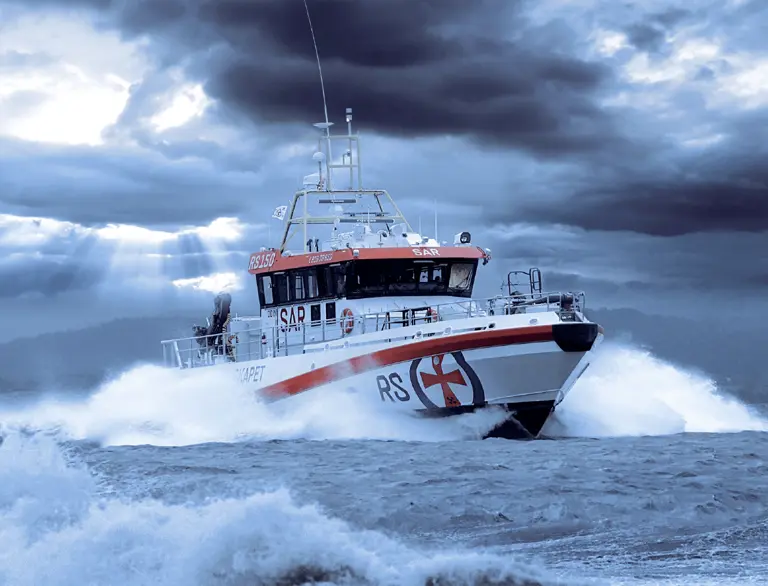

Odin
Name: Odin
Vessel type: SAR Vessel
LOA m: 22,5
Engine power kW: 2 x 1440
Speed knots: 30
Propeller type: 4H120
Diametre mm: 1325
Classification: DNV HS & LC
Shipyard: Swedeship, Sweden

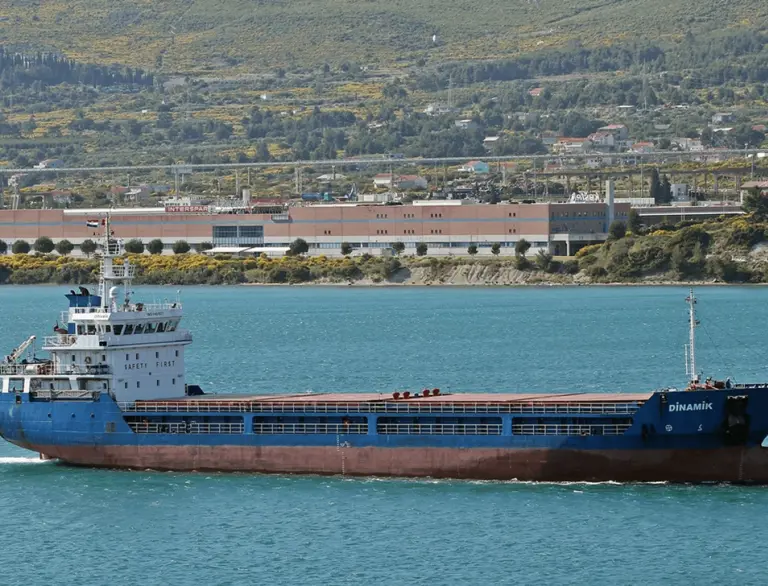

Dinamik
Name: Dinamik
Vessel type: Cargo Vessel
LOA m: 92
Engine power kW: 1920
Speed knots: 11,5
Propeller type: 4TX850/280
Diametre mm: 3820
Classification: BV
Shipyard: Hidrodinamik, Turkey
